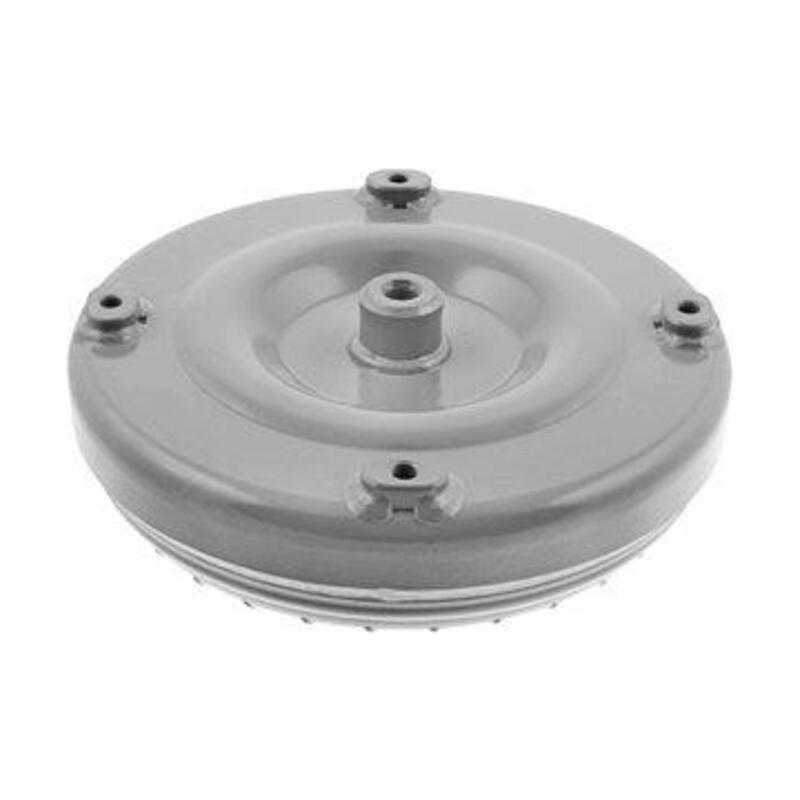

ReconTorque ConverterPart #: CR33N02
$251.84 $50.00 Core
Login for personalized shopping
Description & Specs
Each RECON Certified torque converter is rebuilt to the highest-quality standards in the industry and warranted to be free from manufacturing defects in material and workmanship for 4-years, 100,000-miles from the date of purchase. Our unmatched 5-step remanufacturing process combines the precision of computers with the experience of engineers to ensure consistently high quality is achieved.
Torque Converter; Remanufactured, 11.44" Body Diameter, 2 Ears, Internal Bushing Hub Type, 4 Mounts, Pad Mount Type, 9" Bolt Circle, 1.335" Pilot Outside Diameter, 1.05" Pilot Length, No Ring Gear, 22B Stamped Codes, Low Stall, 20 Turbine Splines, Lock-Up
| Name | Specs |
|---|---|
| Body Diameter Inches | 11.44 |
| Bolt Circle Inches | 9 |
| Codes Dye/Ink Stamped | 22B |
| Hub Type | 2 Ears, Internal Bushing |
| Impeller Brazed | Yes |
| Lock-Up Unit | Yes |
| Mount Type | Pad |
| Number of Mounts | 4 |
| Package UOM | Each |
| Pilot Length Inches | 1.05 |
| Pilot OD Major Inches | 1.335 |
| Pump Stall | Low |
| Quantity Per UOM | 1 |
| Remanufactured | Yes |
| Stator Codes | 6C90 |
| Stator Rotation | Clockwise |
| Stator Spline Count | 32 |
| Stator Vane Count | 19 |
| Turbine Internal Spline Count | 20 |
| Turbine to Pump Clearance | 0.115 |
| Weight | 26.00 |
| Weight UOM | Pounds |
| With Ring Gear | No |
Transmissions
| Name | Years |
|---|---|
| CVT2 | 2007 - 2013 |
Vehicle Fitment
| Years | Vehicle | Drive Types |
|---|---|---|
| 2007 - 2012 | Dodge Caliber | FWD, AWD |
| 2007 - 2013 | Jeep Patriot | FWD, 4WD |
| 2007 - 2013 | Jeep Compass | FWD, 4WD |
