Recon Torque Converter TO65
  • Recon Torque Converter TO65
  • Recon Torque Converter TO65
  • Recon Torque Converter TO65
  • Recon Torque Converter TO65
  • Recon Torque Converter TO65
  • Recon Torque Converter TO65
  • Recon Torque Converter TO65
  • Recon Torque Converter TO65

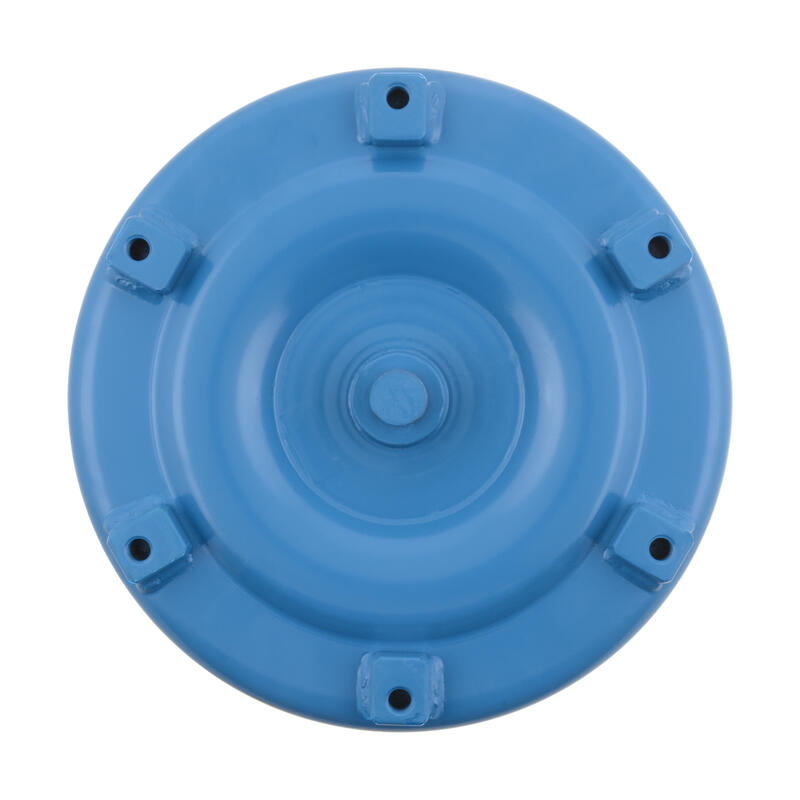

ReconTorque ConverterPart #: TO65

$201.42 $25.00 Core
Quantity
Login for personalized shopping

Description & Specs

Each RECON Certified torque converter is rebuilt to the highest-quality standards in the industry and warranted to be free from manufacturing defects in material and workmanship for 4-years, 100,000-miles from the date of purchase. Our unmatched 5-step remanufacturing process combines the precision of computers with the experience of engineers to ensure consistently high quality is achieved.

Torque Converter; Lock-Up, 10.30" Overall Diameter, 9" Bolt Pattern, 6 Pad Mount w/ 10mm x 1.25 Thread, Slotted Hub, .825/1.257" Pilot Diameter, 20 Spline, Slight High Stall Speed; Codes: 09, 17, 40A840

Name Specs
Billet CoverNo
Body Diameter Inches10.375
Body Diameter mm263.5
Bolt Circle Inches9
Codes Paint09 Paint, Blue Circle, Green Circle, Yellow Dot
Cooling ShroudNo
Dimple PitchHigh 7
Hub Internal BushingNo
Hub OD Major Inches1.497
Hub Seal GrooveNo
Hub TypeSlotted Flanged
Mount Bolt Depth Inches0.515
Mount Threads10mm x 125
Mount TypeSquare Pads
Number of Mounts6
OE Height Inches4.725
Package UOMEach
Pilot OD Major Inches1.375
Pilot OD Minor Inches0.825
Pilot TypeTop Hat
Pump StallHigh
Quantity Per UOM1
RemanufacturedYes
Stator RotationClockwise
Stator Spline Count38
Turbine Internal Spline Count20
Weight25.00
Weight UOMPounds
With Ring GearNo

Transmissions

Name Years
03-72LE1995 - 2013

Vehicle Fitment

Years Vehicle Drive Types
1995 - 2002Kia SportageRWD, 4WD
2004 - 2013Suzuki Grand VitaraAWD, RWD, 4WD
