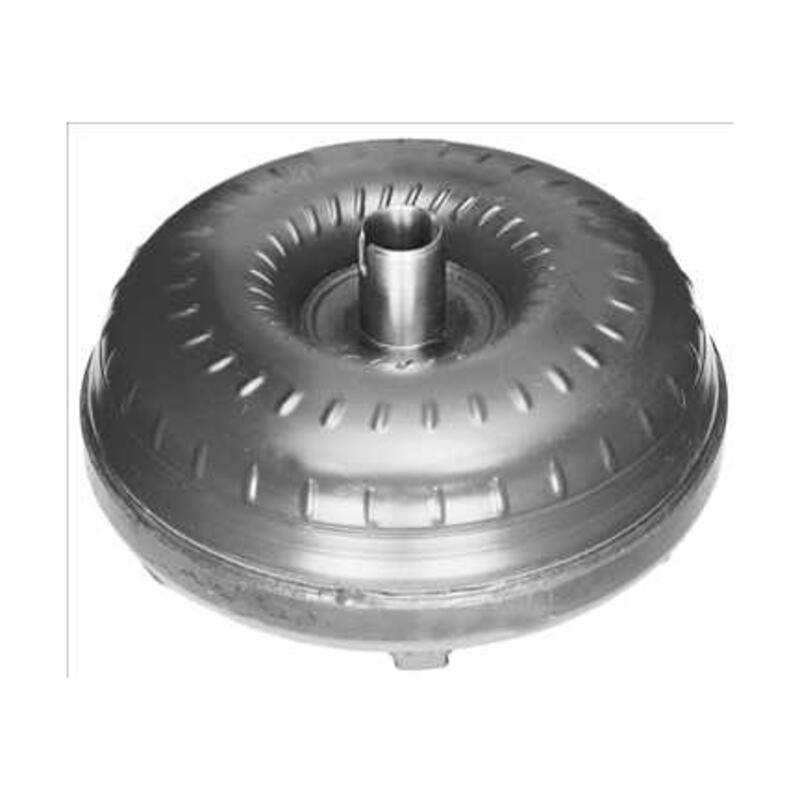

ReconTorque Converter
Part #: TO28 $190.54 $90.00 Core
Login for personalized shopping
Description & Specs
Each RECON Certified torque converter is rebuilt to the highest-quality standards in the industry and warranted to be free from manufacturing defects in material and workmanship for 4-years, 100,000-miles from the date of purchase. Our unmatched 5-step remanufacturing process combines the precision of computers with the experience of engineers to ensure consistently high quality is achieved.
Torque Converter; Remanufactured
| Name | Specs |
|---|---|
| Billet Cover | No |
| Body Diameter Inches | 11.375 |
| Body Diameter mm | 288.9 |
| Bolt Circle Inches | 9.625 |
| Codes Dye/Ink Stamped | Black dot |
| Codes Paint | Black dot |
| Cooling Shroud | No |
| Country of Origin (Primary) | US |
| Dimple Pitch | Medium 6 |
| Hub Internal Bushing | No |
| Hub Length Inches | 1.76 |
| Hub OD Major Inches | 1.498 |
| Hub Seal Groove | No |
| Hub to Thrust Surface Inches | 1.92 |
| Hub Type | Slotted Flanged |
| Lock-Up Unit | Yes |
| Minimum Order Quantity | 1 |
| Mount Bolt Depth Inches | 0.5 |
| Mount Threads | 8mm x 125 |
| Mount Type | Square Pads |
| Number of Mounts | 6 |
| OE End Play | 0.01 |
| OE Height Inches | 4.71 |
| Package UOM | Each |
| Pilot OD Major Inches | 1.1 |
| Pilot Type | Tea Cup |
| Pump Stall | Medium |
| Quantity Per UOM | 1 |
| Remanufactured | Yes |
| Stator Codes | 8961 |
| Stator Rotation | Clockwise |
| Stator Spline Count | 38 |
| Stator Spline Depth Inches | 2.085 |
| Stator Vane Count | 14 |
| Turbine Internal Spline Count | 26 |
| Turbine Spline Depth Inches | 2.955 |
| Turbine to Pump Clearance | 0.17 |
| Weight | 30.00 |
| Weight UOM | Pounds |
| With Ring Gear | No |
