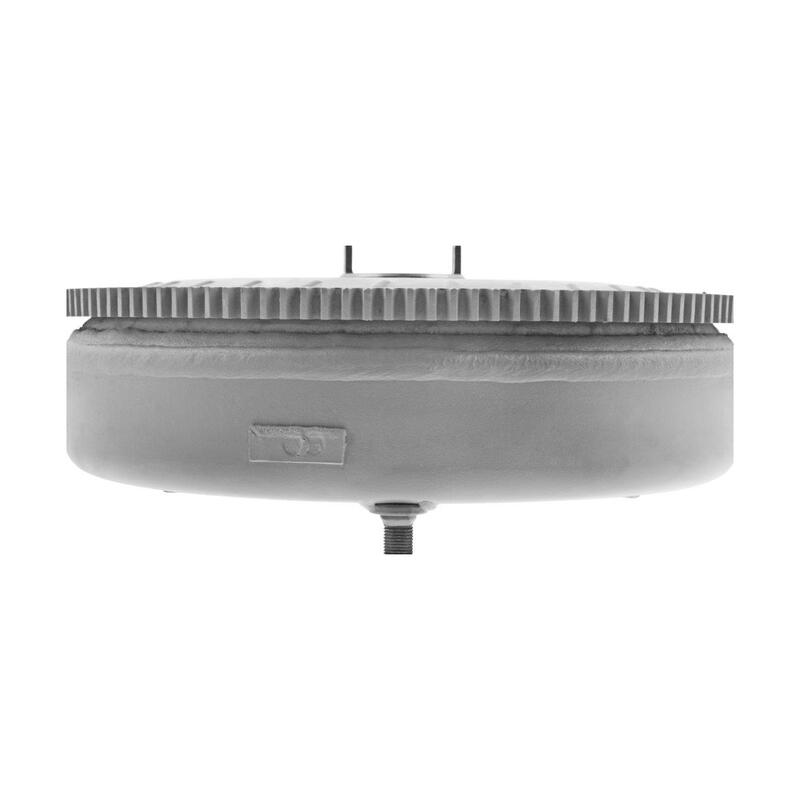

Saxco Torque Converter SX-VW20
  • Saxco Torque Converter SX-VW20
  • Saxco Torque Converter SX-VW20
  • Saxco Torque Converter SX-VW20
  • Saxco Torque Converter SX-VW20
  • Saxco Torque Converter SX-VW20

SaxcoTorque ConverterPart #: SX-VW20

$259.35 $60.00 Core
Quantity
Login for personalized shopping

Description & Specs

A torque converter is a type of fluid coupling that transfers rotating power from a prime mover, like an internal combustion engine, to a rotating driven load. In a vehicle with an automatic transmission, the torque converter connects the power source to the load. It is usually located between the engine's flexplate and the transmission. The equivalent location in a manual transmission would be the mechanical clutch. The main characteristic of a torque converter is its ability to increase torque when the output rotational speed is so low that it allows the fluid coming off the curved vanes of the turbine to be deflected off the stator while it is locked against its one-way clutch, thus providing the equivalent of a reduction gear. This is a feature beyond that of the simple fluid coupling, which can match rotational speed but does not multiply torque, thus reduces power.

Torque Converter; Lock-Up, 10.50" Overall Diameter, 9.250" Bolt Pattern, 3 Studs, 10mm x 1.0 Thread, 2 Drive Ears Hub, .630/0.825" Pilot Diameter, 36 Spline, Medium Stall Speed; Codes: QCDC, QCDR, QCDT, QCDV, QDDT, DCDC

Name Specs
Balance Weight PositionCOVEROD
Billet CoverNo
Body Diameter Inches10.5
Body Diameter mm266.7
Bolt Circle Inches9.25
Bolt Radius Inches4.625
Codes Metal/Laser StampedQDDT
Cooling ShroudNo
Dimension Height7
Dimension Length13
Dimension UOMInches
Dimension Width7
Dimple PitchMedium High 630
Hub Internal BushingNo
Hub Length Inches0.992
Hub OD Major Inches2.006
Hub Seal GrooveNo
Hub Type2 Drive Ears
Lock-Up UnitYes
Mount Threads10mm x 10
Mount TypeThreaded Studs, Round Pads
Number of Mounts3
OE End Play0.018
OE Height Inches3.175
Package UOMEach
Pilot OD Major Inches0.824
Pilot TypeStepped
Pump StallMedium
Quantity Per UOM1
RemanufacturedYes
Ring Gear Tooth Count125
Stator Codes0711 365 099
Stator RotationClockwise
Stator Spline Count44
Stator Vane Count18
Turbine Internal Spline Count36
With Ring GearYes

Transmissions

Name Years
0101987 - 1988
0971990 - 1998
01M1993 - 2006
0961990 - 1999
0951990 - 1991
01P1997 - 2003
09A2002 - 2005

Vehicle Fitment

Years Vehicle Drive Types
1994 - 1998Audi CabrioletFWD
1991 - 1995Audi 90FWD
1990 - 1992Audi 100FWD
1990 - 1997Volkswagen PassatFWD
1993 - 2005Volkswagen JettaFWD
1987 - 2006Volkswagen GolfFWD
1997 - 2003Volkswagen EuroVanFWD
1990 - 1994Volkswagen CorradoFWD
1995 - 2002Volkswagen CabrioFWD
1998 - 2004Volkswagen BeetleFWD
