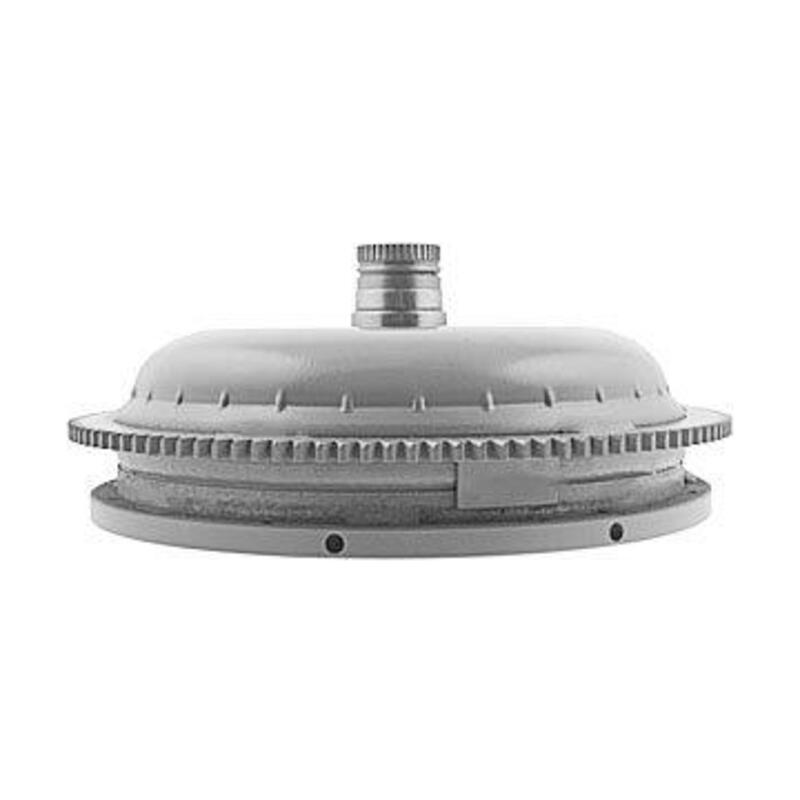

Saxco Torque Converter SX-HO78
  • Saxco Torque Converter SX-HO78
  • Saxco Torque Converter SX-HO78
  • Saxco Torque Converter SX-HO78
  • Saxco Torque Converter SX-HO78
  • Saxco Torque Converter SX-HO78

SaxcoTorque ConverterPart #: SX-HO78

$226.55 $50.00 Core
Quantity
Login for personalized shopping

Description & Specs

A torque converter is a type of fluid coupling that transfers rotating power from a prime mover, like an internal combustion engine, to a rotating driven load. In a vehicle with an automatic transmission, the torque converter connects the power source to the load. It is usually located between the engine's flexplate and the transmission. The equivalent location in a manual transmission would be the mechanical clutch. The main characteristic of a torque converter is its ability to increase torque when the output rotational speed is so low that it allows the fluid coming off the curved vanes of the turbine to be deflected off the stator while it is locked against its one-way clutch, thus providing the equivalent of a reduction gear. This is a feature beyond that of the simple fluid coupling, which can match rotational speed but does not multiply torque, thus reduces power.

Torque Converter; Remanufactured, 10" Body Diameter, External Splined Stepped Flanged Hub Type, 8 Mounts, Mounting Ring Mount Type, 10.25" Bolt Circle, 0.945" Pilot Outside Diameter, Ring Gear, 114 Tooth Ring Gear, b, Y, CA Stamped Code, PEA, PCA, PAA Stamped Codes, Medium Stall, 22 Turbine Splines, Lock-Up

Name Specs
Billet CoverNo
Body Diameter Inches10
Body Diameter mm254
Bolt Circle Inches10.25
Codes Dye/Ink StampedPEA, PCA, PAA
Codes Metal/Laser Stampedb, Y, CA
Cooling ShroudNo
Dimple PitchMedium High 630
Hub External Spline Count38
Hub Internal BushingNo
Hub OD Major Inches1.731
Hub OD Minor Inches1.573
Hub Seal GrooveYes
Hub TypeExternal Splined Stepped Flanged
Lock-Up UnitYes
Mount Threads6mm x 10
Mount TypeMounting Ring
Number of Mounts8
OE Height Inches4.67
Package UOMEach
Pilot OD Major Inches0.945
Pilot TypeDomed
Pump StallMedium
Quantity Per UOM1
RemanufacturedYes
Ring Gear Tooth Count114
Stator RotationCounter-Clockwise
Stator Spline Count32
Stator Spline Depth Inches2.34
Stator Vane Count14
Turbine Internal Spline Count22
Turbine Spline Depth Inches3.135
Turbine to Pump Clearance0.06
Weight34.70
Weight UOMPounds
With Ring GearYes

Transmissions

Name Years
MPJA1995 - 1997
A0YA1994 - 1997
APXA1991 - 1993
B6VA1998 - 1999
BAXA1998 - 2002
M6HA1997 - 2001
MAXA1999 - 2002
MP0A1994 - 1997
MP1A1992 - 1996

Vehicle Fitment

Years Vehicle Drive Types
1998 - 1999Acura CLFWD
1992 - 2001Honda PreludeFWD
1995 - 1997Honda OdysseyFWD
1991 - 2002Honda AccordFWD
