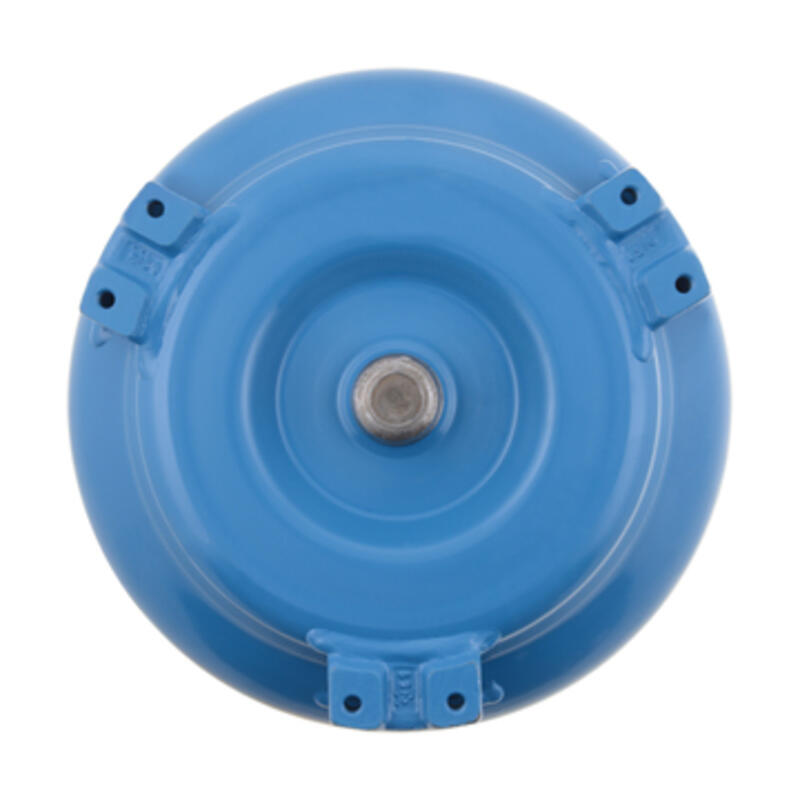

ReconTorque Converter
Part #: MB18A $556.16
$210.00 Core Login for personalized shopping
Description & Specs
Each RECON Certified torque converter is rebuilt to the highest-quality standards in the industry and warranted to be free from manufacturing defects in material and workmanship for 4-years, 100,000-miles from the date of purchase. Our unmatched 5-step remanufacturing process combines the precision of computers with the experience of engineers to ensure consistently high quality is achieved.
Torque Converter; Dual Lock-Up Clutch, 11.375" Dia, 3 Pad Mount, 9.4" Bolt Pattern, 1.375" Pilot, 22 Spline; Codes: 210-250-0702, 210-250-0902, 211 03, 211-250-0002, 211-250-0302, 211-250-0602, 211-250-0702, 211-250-0802, 211-250-1402, 221 08
| Name | Specs |
|---|---|
| Billet Cover | No |
| Body Diameter Inches | 11.36 |
| Body Diameter mm | 288.5 |
| Bolt Circle Inches | 9.4 |
| Bolt Radius Inches | 4.69 |
| Codes Dye/Ink Stamped | 210.09 |
| Codes Metal/Laser Stamped | 210 250 0702, 210 250 0902, 211 250 0002, 211 250 0302 |
| Cooling Shroud | No |
| Country of Origin (Primary) | US |
| Dimple Pitch | Medium 6 |
| Hub Gear Signature | 0.31 |
| Hub Internal Bushing | No |
| Hub Length Inches | 2 |
| Hub OD Major Inches | 1.692 |
| Hub OD Minor Inches | 1.688 |
| Hub Seal Groove | No |
| Hub Type | Slotted Stepped |
| Lock-Up Unit | Yes |
| Minimum Order Quantity | 1 |
| Mount Threads | 8mm x 125 |
| Mount Type | Pads 2 Holes Each |
| Number of Mounts | 3 |
| OE End Play | 0.018 |
| OE Height Inches | 5.892 |
| Package UOM | Each |
| Pilot OD Major Inches | 1.376 |
| Pilot Type | Straight |
| Pump Stall | Medium |
| Quantity Per UOM | 1 |
| Remanufactured | Yes |
| Stator Codes | 124 257 0107 |
| Stator Rotation | Clockwise |
| Stator Spline Count | 38 |
| Stator Spline Depth Inches | 2.6 |
| Stator Vane Count | 13 |
| Turbine Internal Spline Count | 22 |
| Turbine Spline Depth Inches | 3.29 |
| Weight | 24.00 |
| Weight UOM | Pounds |
| With Ring Gear | No |
Transmissions
| Name | Years |
|---|---|
| 722.6 | 1997 - 2006 |
| 722.9 | 2005 - 2007 |
| W5A580 | 2005 - 2006 |
| W5A330 | 2004 - 2006 |
Vehicle Fitment
| Years | Vehicle | Drive Types |
|---|---|---|
| 2004 - 2006 | Chrysler Crossfire | RWD |
| 2001 - 2003 | Mercedes-Benz SL500 | RWD |
| 2000 - 2006 | Mercedes-Benz S430 | AWD, RWD |
| 2006 - 2007 | Mercedes-Benz R500 | AWD |
| 1998 - 2002 | Mercedes-Benz ML320 | 4WD |
| 2003 - 2006 | Mercedes-Benz E500 | AWD, RWD |
| 1997 - 2004 | Mercedes-Benz E320 | AWD, RWD |
| 2006 - 2006 | Mercedes-Benz CLS500 | RWD |
| 2005 - 2006 | Mercedes-Benz CLK500 | RWD |
| 2002 - 2003 | Mercedes-Benz CLK320 | RWD |
| 2005 - 2006 | Mercedes-Benz CL500 | RWD |
| 2001 - 2005 | Mercedes-Benz C320 | AWD, RWD |
| 1997 - 2000 | Mercedes-Benz C280 | RWD |
| 2001 - 2005 | Mercedes-Benz C240 | AWD, RWD |
