Recon Torque Converter JA95
  • Recon Torque Converter JA95
  • Recon Torque Converter JA95
  • Recon Torque Converter JA95
  • Recon Torque Converter JA95
  • Recon Torque Converter JA95
  • Recon Torque Converter JA95
  • Recon Torque Converter JA95
  • Recon Torque Converter JA95

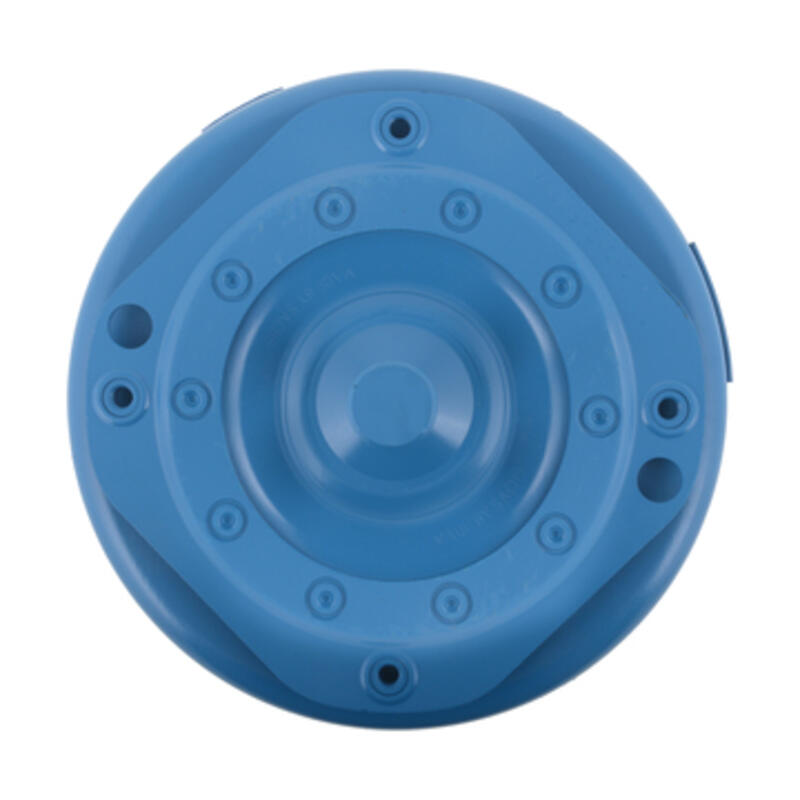

ReconTorque ConverterPart #: JA95

$464.45 $50.00 Core
Quantity
Login for personalized shopping

Description & Specs

Each RECON Certified torque converter is rebuilt to the highest-quality standards in the industry and warranted to be free from manufacturing defects in material and workmanship for 4-years, 100,000-miles from the date of purchase. Our unmatched 5-step remanufacturing process combines the precision of computers with the experience of engineers to ensure consistently high quality is achieved.

Torque Converter; Captive Clutch, 11.125" Overall Diameter, 8.875" Bolt Pattern, 4 Nuts, 10mm x 1.5 Thread, Slotted / Stepped Hub, 1.375" Pilot Diameter, 1.50" Pilot Length, 27 Spline, Medium Stall Speed; Codes: 206 505, F65 P62, B85

Name Specs
Billet CoverNo
Body Diameter Inches11.125
Body Diameter mm282.6
Bolt Circle Inches8.875
Codes Dye/Ink StampedP62, F65, K76
Codes Metal/Laser Stamped206 505, k76
Cooling ShroudNo
Dimple PitchMedium 6
Hub Gear Signature0.33
Hub Internal BushingNo
Hub Length Inches2.1
Hub OD Major Inches1.771
Hub OD Minor Inches1.748
Hub Seal GrooveNo
Hub TypeSlotted Stepped
Lock-Up UnitYes
Mount Threads10mm X 15
Mount TypeDRVPLTCAPTLGS
Number of Mounts4
OE End Play0.02
OE Height Inches5.615
Package UOMEach
Pilot Length Inches1.5
Pilot OD Major Inches1.376
Pilot TypeTable Top
Pump StallMedium
Quantity Per UOM1
RemanufacturedYes
Stator Codes0711 263 198
Stator RotationClockwise
Stator Spline Count38
Stator Spline Depth Inches2.605
Stator Vane Count11
Turbine Internal Spline Count27
Turbine Spline Depth Inches3.4
Turbine to Pump Clearance0.1
Weight26.33
Weight UOMPounds
With Ring GearNo

Transmissions

Name Years
6HP262003 - 2008

Vehicle Fitment

Years Vehicle Drive Types
2003 - 2008Jaguar S-TypeRWD
