Recon Torque Converter HO3006
  • Recon Torque Converter HO3006
  • Recon Torque Converter HO3006
  • Recon Torque Converter HO3006
  • Recon Torque Converter HO3006
  • Recon Torque Converter HO3006
  • Recon Torque Converter HO3006
  • Recon Torque Converter HO3006
  • Recon Torque Converter HO3006

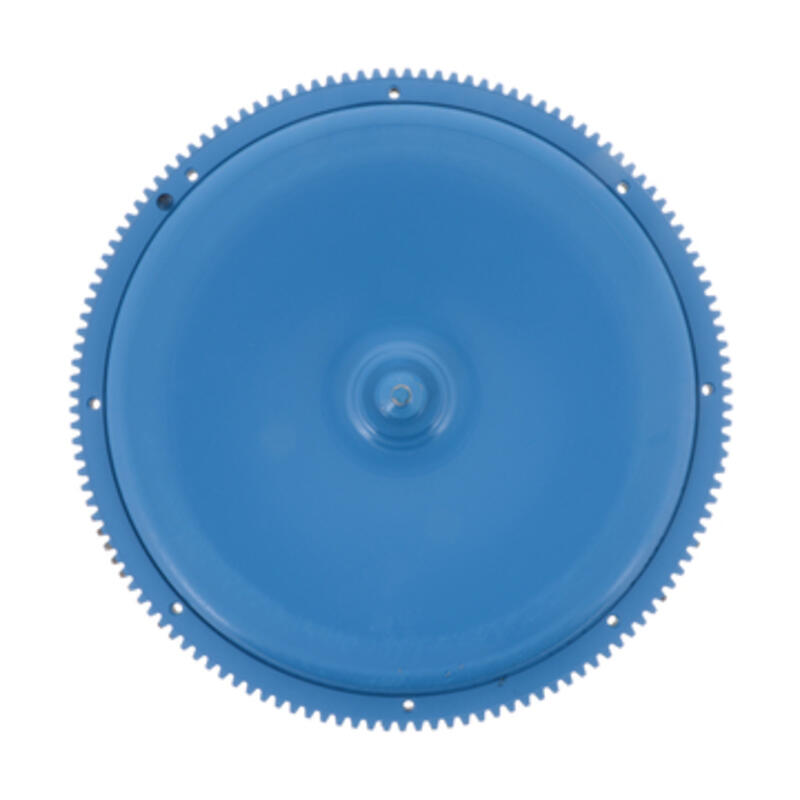

ReconTorque ConverterPart #: HO3006

$247.51 $75.00 Core
Call for Availability:  +1 (833) 363-1938
Quantity
Login for personalized shopping

Description & Specs

Each RECON Certified torque converter is rebuilt to the highest-quality standards in the industry and warranted to be free from manufacturing defects in material and workmanship for 4-years, 100,000-miles from the date of purchase. Our unmatched 5-step remanufacturing process combines the precision of computers with the experience of engineers to ensure consistently high quality is achieved.

Torque Converter; Lock-Up, 11.625" Overall Diameter, 12.125" Bolt Pattern, Ring Gear, 6mm x 1.0 Thread, 39 Spline/Step/Flanged/ w/ Grooved Hub, .945" Pilot Diameter, 22 Spline, Medium Stall Speed; Codes: 05, RYE

Name Specs
Billet CoverNo
Body Diameter Inches11.625
Body Diameter mm295.3
Bolt Circle Inches12.125
Codes Dye/Ink StampedRYE
Codes Metal/Laser Stamped05,
Cooling ShroudNo
Dimple PitchMedium High 630
Hub External Spline Count39
Hub Internal BushingNo
Hub Length Inches1.585
Hub OD Major Inches1.81
Hub OD Minor Inches1.652
Hub Seal GrooveYes
Hub TypeExternal Splined Stepped Flanged
Lock-Up UnitYes
Mount Threads6mm x 10
Mount TypeThreaded Ring Gear
Number of Mounts8
OE End Play0.012
OE Height Inches4.115
Package UOMEach
Pilot OD Major Inches0.945
Pilot TypeDomed
Pump StallLow
Quantity Per UOM1
RemanufacturedYes
Ring Gear Tooth Count131
Stator CodesYE EAGLE
Stator RotationClockwise
Stator Spline Count32
Stator Spline Depth Inches2.2
Stator Vane Count17
Turbine Internal Spline Count22
Turbine Spline Depth Inches2.86
Weight32.00
Weight UOMPounds
With Ring GearYes
