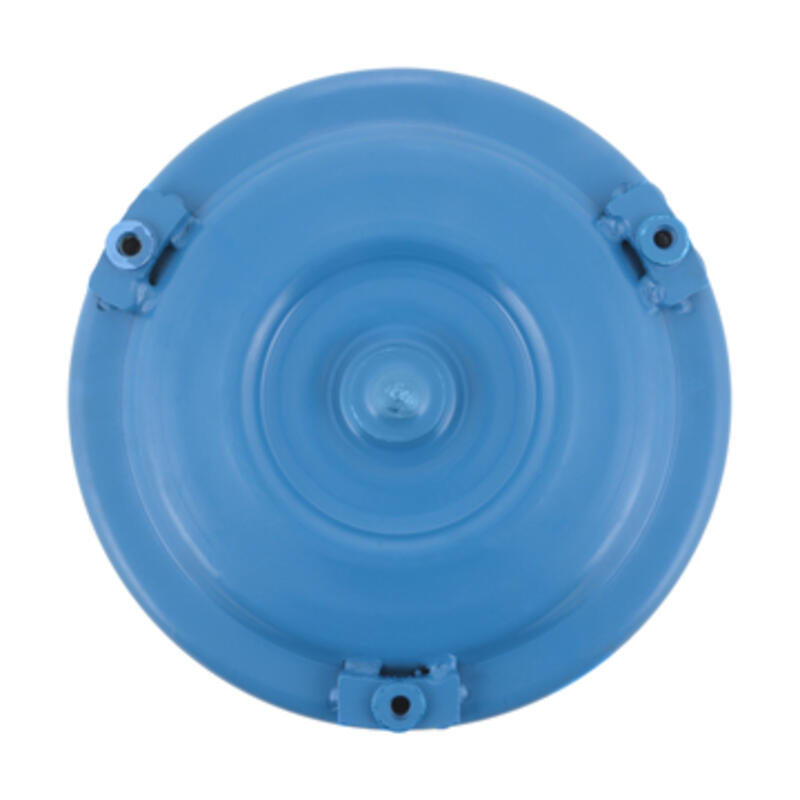

ReconTorque Converter
Part #: GM15AH $167.07 $100.00 Core
Login for personalized shopping
Description & Specs
Each RECON Certified torque converter is rebuilt to the highest-quality standards in the industry and warranted to be free from manufacturing defects in material and workmanship for 4-years, 100,000-miles from the date of purchase. Our unmatched 5-step remanufacturing process combines the precision of computers with the experience of engineers to ensure consistently high quality is achieved.
Torque Converter; Remanufactured, 12" Body Diameter, Slotted Hub Type, 3 Mounts, Round Padds Mount Type, 10.75" Bolt Circle, 1.703" Pilot Outside Diameter, No Ring Gear, CB, CB4C, CB5C Stamped Codes, 1800-2000 Stall, 27 Turbine Splines, Lock-Up
| Name | Specs |
|---|---|
| Balance Weight Position | IMPELOD |
| Billet Cover | No |
| Body Diameter Inches | 12 |
| Bolt Circle Inches | 10.75 |
| Bolt Radius Inches | 5.375 |
| Codes Dye/Ink Stamped | CB, CB4C, CB5C |
| Cooling Shroud | No |
| Dimple Pitch | Medium 6 |
| Hub Gear Signature | 0.315 |
| Hub Internal Bushing | No |
| Hub Length Inches | 1.965 |
| Hub OD Major Inches | 1.745 |
| Hub Seal Groove | No |
| Hub Type | Slotted |
| Lock-Up Unit | Yes |
| Mount Bolt Depth Inches | 0.655 |
| Mount Threads | 10mm X 15 |
| Mount Type | Round Padds |
| Number of Mounts | 3 |
| OE End Play | 0.015 |
| OE Height Inches | 5.845 |
| Package UOM | Each |
| Pilot OD Major Inches | 1.703 |
| Pilot Type | Straight |
| Pump Stall | 1800-2000 |
| Quantity Per UOM | 1 |
| Remanufactured | Yes |
| Stator Spline Depth Inches | 2.34 |
| Turbine Internal Spline Count | 27 |
| Turbine Spline Depth Inches | 3.71 |
| Weight | 36.00 |
| Weight UOM | Pounds |
| With Ring Gear | No |
Transmissions
| Name | Years |
|---|---|
| THM200-4R | 1981 - 1987 |
| TH200/M16 | 1980 - 1980 |
| THM200/M29 | 1979 - 1980 |
| THM200C/MV9 | 1979 - 1987 |
| THM250C/M31 | 1980 - 1984 |
| THM325/M32 | 1981 - 1981 |
| THM325-4L/M57 | 1982 - 1985 |
| THM700-R4/4L60/MD8 | 1982 - 1987 |
| THM325-4L | 1982 - 1985 |
Vehicle Fitment
| Years | Vehicle | Drive Types |
|---|---|---|
| 1982 - 1984 | Buick Riviera | FWD |
| 1979 - 1987 | Buick Regal | RWD |
| 1981 - 1985 | Buick LeSabre | RWD |
| 1981 - 1984 | Buick Electra | RWD |
| 1979 - 1981 | Buick Century | RWD |
| 1981 - 1985 | Cadillac Seville | FWD |
| 1980 - 1984 | Cadillac Fleetwood | RWD |
| 1981 - 1985 | Cadillac Eldorado | FWD |
| 1980 - 1984 | Cadillac DeVille | RWD |
| 1985 - 1985 | Cadillac Commercial Chassis | FWD |
| 1979 - 1980 | Chevrolet Monza | RWD |
| 1979 - 1985 | Chevrolet Monte Carlo | RWD |
| 1980 - 1983 | Chevrolet Malibu | RWD |
| 1980 - 1985 | Chevrolet Impala | RWD |
| 1980 - 1985 | Chevrolet El Camino | RWD |
| 1980 - 1987 | Chevrolet Caprice | RWD |
| 1980 - 1984 | Chevrolet Camaro | RWD |
| 1980 - 1985 | GMC Caballero | RWD |
| 1982 - 1984 | Oldsmobile Toronado | FWD |
| 1979 - 1980 | Oldsmobile Starfire | RWD |
| 1980 - 1985 | Oldsmobile Delta 88 | RWD |
| 1980 - 1984 | Oldsmobile Cutlass Supreme | RWD |
| 1980 - 1980 | Oldsmobile Cutlass Salon | RWD |
| 1980 - 1982 | Oldsmobile Cutlass Cruiser | RWD |
| 1980 - 1984 | Oldsmobile Cutlass Calais | RWD |
| 1980 - 1981 | Oldsmobile Cutlass | RWD |
| 1982 - 1984 | Oldsmobile 98 | RWD |
| 1979 - 1979 | Pontiac Sunbird | RWD |
| 1984 - 1985 | Pontiac Parisienne | RWD |
| 1979 - 1981 | Pontiac LeMans | RWD |
| 1979 - 1985 | Pontiac Grand Prix | RWD |
| 1979 - 1981 | Pontiac Grand LeMans | RWD |
| 1980 - 1980 | Pontiac Grand Am | RWD |
| 1980 - 1984 | Pontiac Firebird | RWD |
| 1980 - 1981 | Pontiac Catalina | RWD |
| 1980 - 1985 | Pontiac Bonneville | RWD |
