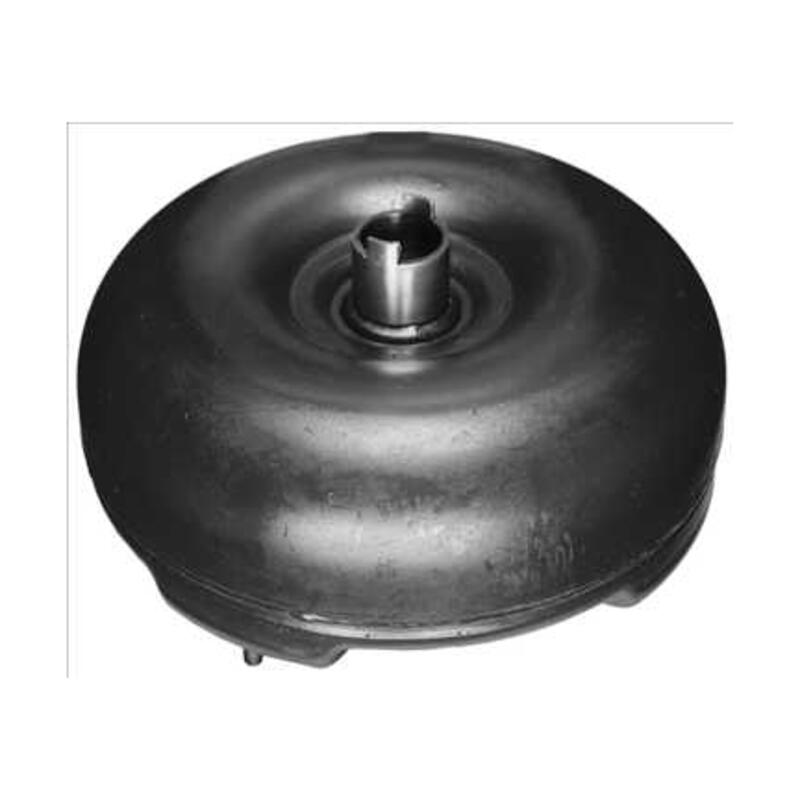

ReconTorque Converter
Part #: FM2 $173.77 $66.00 Core
Call for Availability: +1 (833) 363-1938
Login for personalized shopping
Description & Specs
Each RECON Certified torque converter is rebuilt to the highest-quality standards in the industry and warranted to be free from manufacturing defects in material and workmanship for 4-years, 100,000-miles from the date of purchase. Our unmatched 5-step remanufacturing process combines the precision of computers with the experience of engineers to ensure consistently high quality is achieved.
Torque Converter; Remanufactured
| Name | Specs |
|---|---|
| Balance Weight Position | IMPELOD |
| Billet Cover | No |
| Body Diameter Inches | 13 |
| Body Diameter mm | 330.2 |
| Bolt Circle Inches | 11.438 |
| Clutch Configuration | NA |
| Clutch Damper Position | NA |
| Cooling Shroud | No |
| Country of Origin (Primary) | US |
| Dimple Pitch | No Dimple |
| Hub Gear Signature | 0.225 |
| Hub Internal Bushing | No |
| Hub Length Inches | 1.555 |
| Hub OD Major Inches | 1.937 |
| Hub Seal Groove | No |
| Hub Type | 2 Drive Ears |
| Lock-Up Unit | No |
| Minimum Order Quantity | 1 |
| Mount Threads | 38 x 24 |
| Mount Type | Threaded Studs, Round Pads |
| Number of Mounts | 4 |
| OE End Play | 0.015 |
| OE Height Inches | 5.905 |
| Package UOM | Each |
| Pilot OD Major Inches | 1.847 |
| Pilot Type | Straight |
| Pump Stall | Medium |
| Quantity Per UOM | 1 |
| Remanufactured | Yes |
| Stator Rotation | Clockwise |
| Stator Spline Count | 29 |
| Stator Spline Depth Inches | 2.72 |
| Stator Vane Count | 11 |
| Turbine Hub Seals | NA |
| Turbine Internal Spline Count | 29 |
| Turbine Spline Depth Inches | 3.8 |
| Turbine To Piston Drive | NA |
| Turbine to Pump Clearance | 0.05 |
| Weight | 34.00 |
| Weight UOM | Pounds |
| With Ring Gear | No |
