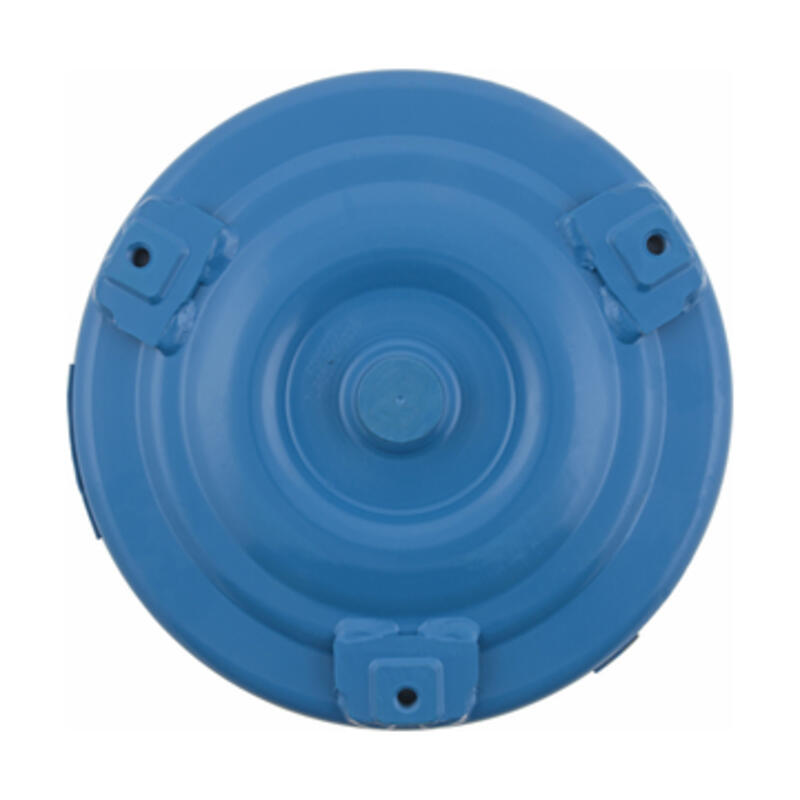

ReconTorque ConverterPart #: FM1241
Description & Specs
Each RECON Certified torque converter is rebuilt to the highest-quality standards in the industry and warranted to be free from manufacturing defects in material and workmanship for 4-years, 100,000-miles from the date of purchase. Our unmatched 5-step remanufacturing process combines the precision of computers with the experience of engineers to ensure consistently high quality is achieved.
Torque Converter; Remanufactured, 11.25" Body Diameter, Milled 2 Flats Flanged Hub Type, 3 Mounts, Square Pads Mount Type, 9.75" Bolt Circle, 1.375" Pilot Outside Diameter, 0.73" Pilot Length, No Ring Gear, White Square & Purple Paint Splotch Paint Code, 5K53551F0470, 7L7, 7L70651F0073, 7L70321F0390, 7L72651F0437, FOMOCO, Stamped Code, Low Stall, 27 Turbine Splines, Lock-Up
| Name | Specs |
|---|---|
| Balance Weight Position | COVEROD |
| Billet Cover | No |
| Body Diameter Inches | 11.25 |
| Body Diameter mm | 285.8 |
| Bolt Circle Inches | 9.75 |
| Bolt Radius Inches | 4.875 |
| Codes Metal/Laser Stamped | 5K53551F0470, 7L7, 7L70651F0073, 7L70321F0390, 7L72651F0437, FOMOCO, |
| Codes Paint | White Square & Purple Paint Splotch |
| Cooling Shroud | No |
| Dimple Pitch | Low 5 |
| Hub Internal Bushing | Yes |
| Hub Length Inches | 1.515 |
| Hub OD Major Inches | 2.058 |
| Hub OD Minor Inches | 2.046 |
| Hub Seal Groove | No |
| Hub Type | Milled 2 Flats Flanged |
| Lock-Up Unit | Yes |
| Mount Threads | 10mm X 15 |
| Mount Type | Square Pads |
| Number of Mounts | 3 |
| OE End Play | 0.02 |
| OE Height Inches | 3.94 |
| Package UOM | Each |
| Pilot Length Inches | 0.73 |
| Pilot OD Major Inches | 1.375 |
| Pilot Type | Table Top |
| Pump Stall | Low |
| Quantity Per UOM | 1 |
| Remanufactured | Yes |
| Stator Rotation | Clockwise |
| Stator Spline Count | 36 |
| Stator Spline Depth Inches | 1.86 |
| Stator Vane Count | 18 |
| Turbine Internal Spline Count | 27 |
| Turbine Spline Depth Inches | 2.42 |
| Turbine to Pump Clearance | 0.115 |
| Weight | 29.78 |
| Weight UOM | Pounds |
| With Ring Gear | No |
Transmissions
| Name | Years |
|---|---|
| 6F50 | 2007 - 2016 |
| 6F35 | 2012 - 2016 |
| 6F55 | 2010 - 2017 |
Vehicle Fitment
| Years | Vehicle | Drive Types |
|---|---|---|
| 2008 - 2009 | Ford Taurus X | FWD, AWD |
| 2008 - 2013 | Ford Taurus | FWD, AWD |
| 2013 - 2016 | Ford Police Interceptor Utility | FWD, AWD |
| 2010 - 2012 | Ford Fusion | FWD, AWD |
| 2009 - 2016 | Ford Flex | FWD, AWD |
| 2011 - 2017 | Ford Explorer | FWD, AWD |
| 2007 - 2016 | Ford Edge | FWD, AWD |
| 2013 - 2016 | Lincoln MKZ | FWD, AWD |
| 2007 - 2016 | Lincoln MKX | FWD, AWD |
| 2010 - 2016 | Lincoln MKT | FWD, AWD |
| 2009 - 2016 | Lincoln MKS | FWD, AWD |
| 2008 - 2009 | Mercury Sable | FWD, AWD |
