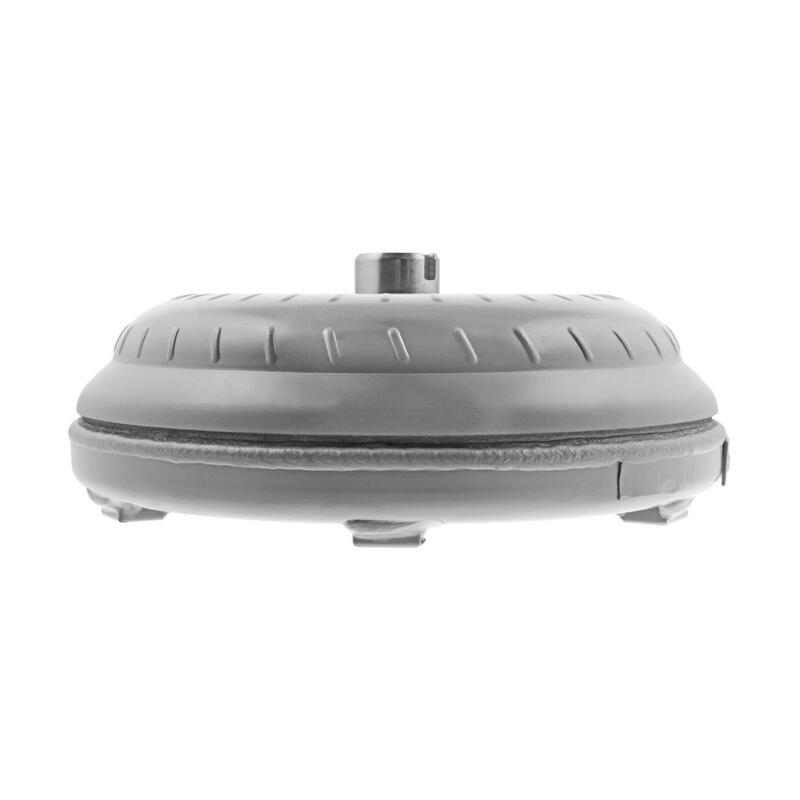

CVC Torque Converter CV-TO55
  • CVC Torque Converter CV-TO55
  • CVC Torque Converter CV-TO55
  • CVC Torque Converter CV-TO55
  • CVC Torque Converter CV-TO55
  • CVC Torque Converter CV-TO55

CVCTorque ConverterPart #: CV-TO55

$247.62 $10.00 Core
Quantity
Login for personalized shopping

Description & Specs

Expect the best with CVC. Specializing in reliable, yet affordable, sealed torque converters, CVC torque converters are among the most popular in the industry. Their unique process combines the skillful experience of bench craftsman with the industrial engineering production line.

Torque Converter; Lock-Up, 11.125" Overall Diameter, 9.60" Bolt Pattern, 6 Pads Mount w/ 9mm x 1.25 Thread, Slotted/Flanged Hub, .825/1.257" Pilot Diameter, 26 Spline, Low Stall Speed; Remanufactured

Name Specs
Billet CoverNo
Body Diameter Inches11.2
Body Diameter mm284.5
Bolt Circle Inches9.6
Codes Metal/Laser StampedL inside of a circle
Codes PaintPink paint dot
Cooling ShroudNo
Dimension Height7.375
Dimension Length13.5
Dimension UOMInches
Dimension Width13.5
Dimple PitchLow 5
Hub Internal BushingNo
Hub Length Inches1.56
Hub OD Major Inches1.498
Hub Seal GrooveNo
Hub TypeSlotted Flanged
Lock-Up UnitYes
Mount Bolt Depth Inches0.4
Mount Threads9mm x 125
Mount TypeSquare Pads
Number of Mounts6
OE End Play0.02
OE Height Inches4.32
Package UOMEach
Pilot OD Major Inches1.257
Pilot TypeTop Hat
Pump StallLow
Quantity Per UOM1
RemanufacturedYes
Stator Codes20020 2BK
Stator RotationClockwise
Stator Spline Count38
Stator Spline Depth Inches2.1
Stator Vane Count20
Turbine Internal Spline Count26
Turbine Spline Depth Inches2.78
Turbine to Pump Clearance0.1
Weight30
Weight UOMPounds
With Ring GearNo

Transmissions

Name Years
A540E1992 - 2000
A541E1994 - 2003
U140E2002 - 2003
U241E2002 - 2004

Vehicle Fitment

Years Vehicle Drive Types
1994 - 2001Lexus ES300FWD
1998 - 2003Toyota SiennaFWD
1992 - 2004Toyota CamryFWD
