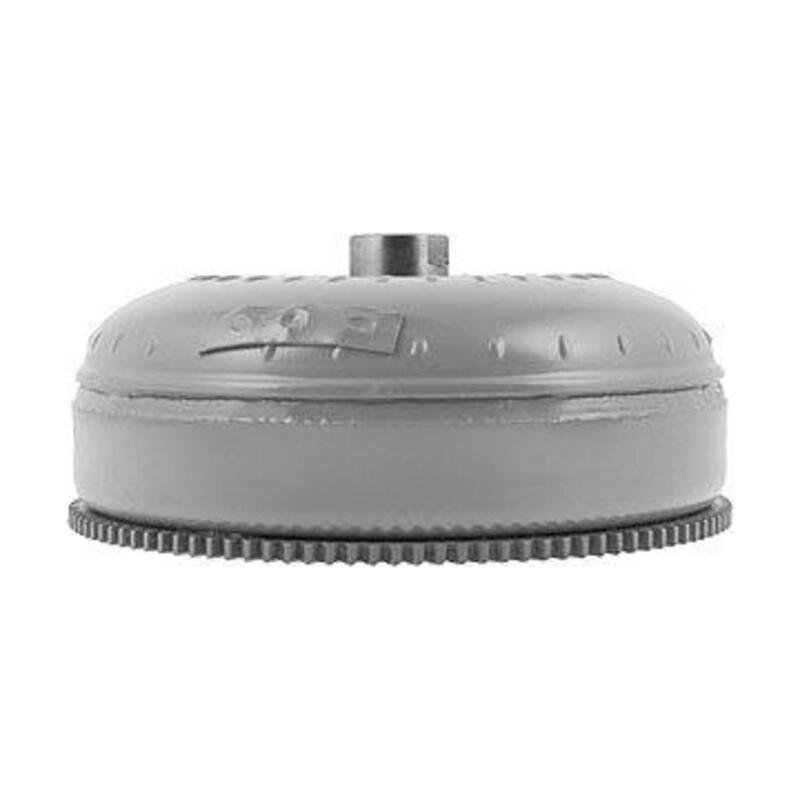

CVC Torque Converter CV-KM28
  • CVC Torque Converter CV-KM28
  • CVC Torque Converter CV-KM28
  • CVC Torque Converter CV-KM28
  • CVC Torque Converter CV-KM28
  • CVC Torque Converter CV-KM28

CVCTorque ConverterPart #: CV-KM28

$238.87 $10.00 Core
Quantity
Login for personalized shopping

Description & Specs

Expect the best with CVC. Specializing in reliable, yet affordable, sealed torque converters, CVC torque converters are among the most popular in the industry. Their unique process combines the skillful experience of bench craftsman with the industrial engineering production line.

Torque Converter; Lock-Up, 10.875" Overall Diameter, 8.750" Bolt Pattern, 4 Pad Mount w/ 10mm x 1.25 Thread, Flats / Flanged Hub, 1.335" Pilot Diameter, 20 Spline, High Stall Speed, 6D, P9; Codes: LF, 6D, 6X, FE, LB, LE, P9

Name Specs
Billet CoverNo
Body Diameter Inches10.875
Body Diameter mm276.2
Bolt Circle Inches8.75
Codes Dye/Ink Stamped6d
Cooling ShroudNo
Dimension Height7.375
Dimension Length11.625
Dimension UOMInches
Dimension Width11.625
Dimple PitchMedium High 630
Hub Internal BushingNo
Hub Length Inches1.487
Hub OD Major Inches1.691
Hub Seal GrooveNo
Hub TypeMilled 2 Flats Flanged
Lock-Up UnitYes
Mount Threads10mm x 125
Mount TypeOval Pads
Number of Mounts4
OE End Play0.02
OE Height Inches4.75
Package UOMEach
Pilot OD Major Inches1.335
Pilot TypeStraight
Pump StallHigh
Quantity Per UOM1
RemanufacturedYes
Ring Gear Tooth Count110
Stator Codes6A59-2
Stator RotationClockwise
Stator Spline Count38
Stator Vane Count18
Turbine Internal Spline Count20
Weight32
Weight UOMPounds
With Ring GearYes

Transmissions

Name Years
F4A512001 - 2005
F4A422001 - 2005
F5A512001 - 2005
F4A51-21999 - 2004

Vehicle Fitment

Years Vehicle Drive Types
2002 - 2002Chrysler SebringFWD
2001 - 2005Dodge StratusFWD
2004 - 2005Hyundai XG350FWD
2001 - 2001Hyundai XG300FWD
2002 - 2005Kia SedonaFWD
1999 - 2003Mitsubishi GalantFWD
2000 - 2004Mitsubishi EclipseFWD
