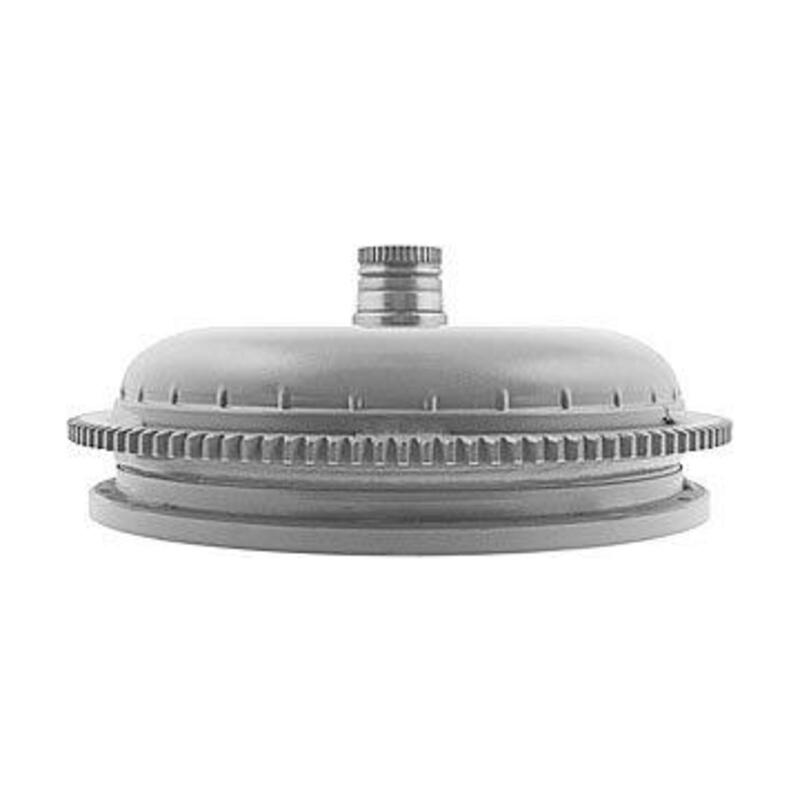

CVCTorque Converter
Part #: CV-HO77 $261.78 $20.00 Core
Login for personalized shopping
Description & Specs
Expect the best with CVC. Specializing in reliable, yet affordable, sealed torque converters, CVC torque converters are among the most popular in the industry. Their unique process combines the skillful experience of bench craftsman with the industrial engineering production line.
Torque Converter; Remanufactured, 10.063" Body Diameter, External Splined Stepped Flanged Hub Type, 8 Mounts, Mounting Ring Mount Type, 10.25" Bolt Circle, 0.945" Pilot Outside Diameter, Ring Gear, 114 Tooth Ring Gear, 5M, EA, 4M, FEA Stamped Code, Medium Stall, 22 Turbine Splines, Lock-Up
| Name | Specs |
|---|---|
| Billet Cover | No |
| Body Diameter Inches | 10.063 |
| Body Diameter mm | 255.6 |
| Bolt Circle Inches | 10.25 |
| Codes Metal/Laser Stamped | 5M, EA, 4M, FEA |
| Cooling Shroud | No |
| Dimension Height | 7.375 |
| Dimension Length | 11.625 |
| Dimension UOM | Inches |
| Dimension Width | 11.625 |
| Dimple Pitch | Medium High 630 |
| Hub External Spline Count | 38 |
| Hub Internal Bushing | No |
| Hub OD Major Inches | 1.732 |
| Hub OD Minor Inches | 1.572 |
| Hub Seal Groove | Yes |
| Hub Type | External Splined Stepped Flanged |
| Lock-Up Unit | Yes |
| Mount Threads | 6mm x 10 |
| Mount Type | Mounting Ring |
| Number of Mounts | 8 |
| OE Height Inches | 4.68 |
| Package UOM | Each |
| Pilot OD Major Inches | 0.945 |
| Pilot Type | Domed |
| Pump Stall | Medium |
| Quantity Per UOM | 1 |
| Remanufactured | Yes |
| Ring Gear Tooth Count | 114 |
| Stator Codes | POA |
| Stator Rotation | Counter-Clockwise |
| Stator Spline Count | 32 |
| Stator Spline Depth Inches | 2.32 |
| Stator Vane Count | 14 |
| Turbine Internal Spline Count | 22 |
| Turbine Spline Depth Inches | 3.14 |
| Turbine to Pump Clearance | 0.065 |
| Weight | 31 |
| Weight UOM | Pounds |
| With Ring Gear | Yes |
Transmissions
| Name | Years |
|---|---|
| MDWA | 1998 - 1998 |
| MPJA | 1995 - 1997 |
| B6VA | 1998 - 1999 |
| BAXA | 1998 - 2002 |
| M6HA | 1997 - 2001 |
| MAXA | 1999 - 2002 |
| MP1A | 1992 - 1996 |
| SKWA | 2000 - 2001 |
Vehicle Fitment
| Years | Vehicle | Drive Types |
|---|---|---|
| 2000 - 2001 | Acura Integra | FWD |
| 1998 - 1999 | Acura CL | FWD |
| 1992 - 2001 | Honda Prelude | FWD |
| 1995 - 1998 | Honda Odyssey | FWD |
| 1998 - 2002 | Honda Accord | FWD |
| 1996 - 1997 | Isuzu Oasis | FWD |
