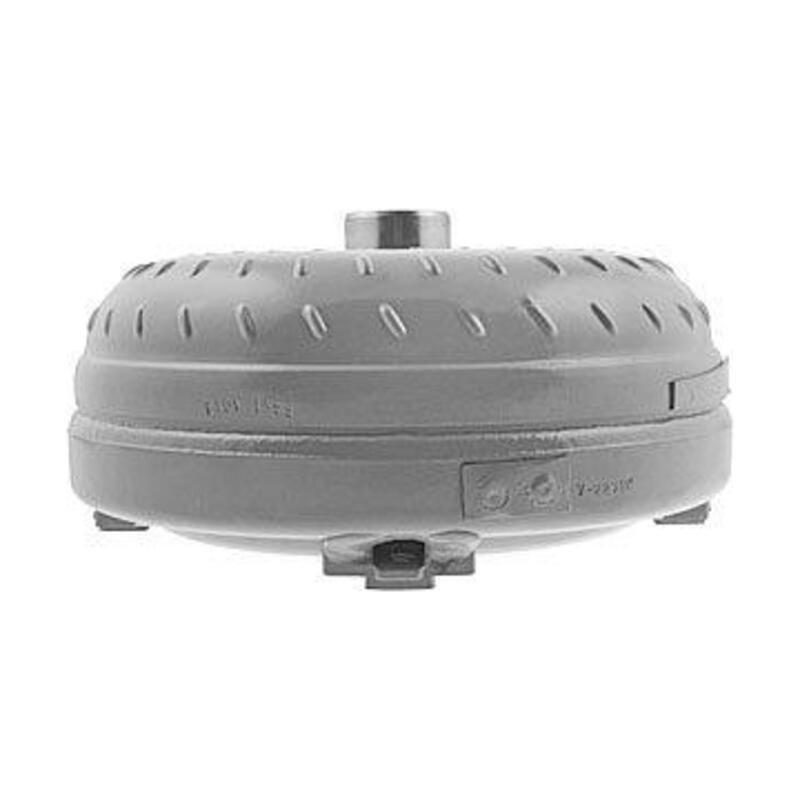

CVC Torque Converter CV-GM86A
  • CVC Torque Converter CV-GM86A
  • CVC Torque Converter CV-GM86A
  • CVC Torque Converter CV-GM86A
  • CVC Torque Converter CV-GM86A
  • CVC Torque Converter CV-GM86A

CVCTorque ConverterPart #: CV-GM86A

$275.31 $10.00 Core
Quantity
Login for personalized shopping

Description & Specs

Expect the best with CVC. Specializing in reliable, yet affordable, sealed torque converters, CVC torque converters are among the most popular in the industry. Their unique process combines the skillful experience of bench craftsman with the industrial engineering production line.

Torque Converter; Lock-Up with On/Off, 11.250" Overall Diameter, 9.80" Bolt Pattern, 4 Pads Mount w/ 10mm x 1.5 Thread, No Drive Hub, .824" Pilot Diameter, 30 Spline, Low Stall Speed; Remanufactured

Name Specs
Balance Weight PositionIMPELOD
Billet CoverNo
Body Diameter Inches11.375
Body Diameter mm288.9
Bolt Circle Inches9.875
Cooling ShroudNo
Dimension Height7.375
Dimension Length11.625
Dimension UOMInches
Dimension Width11.625
Dimple PitchLow 5
Hub Internal BushingNo
Hub Length Inches1.715
Hub OD Major Inches1.873
Hub Seal GrooveNo
Hub TypeNo Drive
Mount Bolt Depth Inches0.695
Mount Threads10mm X 15
Mount TypeStepped Pads
Number of Mounts4
OE End Play0.015
OE Height Inches5.46
Package UOMEach
Pilot OD Major Inches0.825
Pilot TypeStraight
Quantity Per UOM1
RemanufacturedYes
Stator Spline Depth Inches2.115
Turbine Spline Depth Inches4.04
Weight32
Weight UOMPounds
With Ring GearNo

Transmissions

Name Years
4T80-E1993 - 2005

Vehicle Fitment

Years Vehicle Drive Types
1993 - 2004Cadillac SevilleFWD
1993 - 2002Cadillac EldoradoFWD
1994 - 2005Cadillac DeVilleFWD
1995 - 2003Oldsmobile AuroraFWD
2004 - 2005Pontiac BonnevilleFWD
