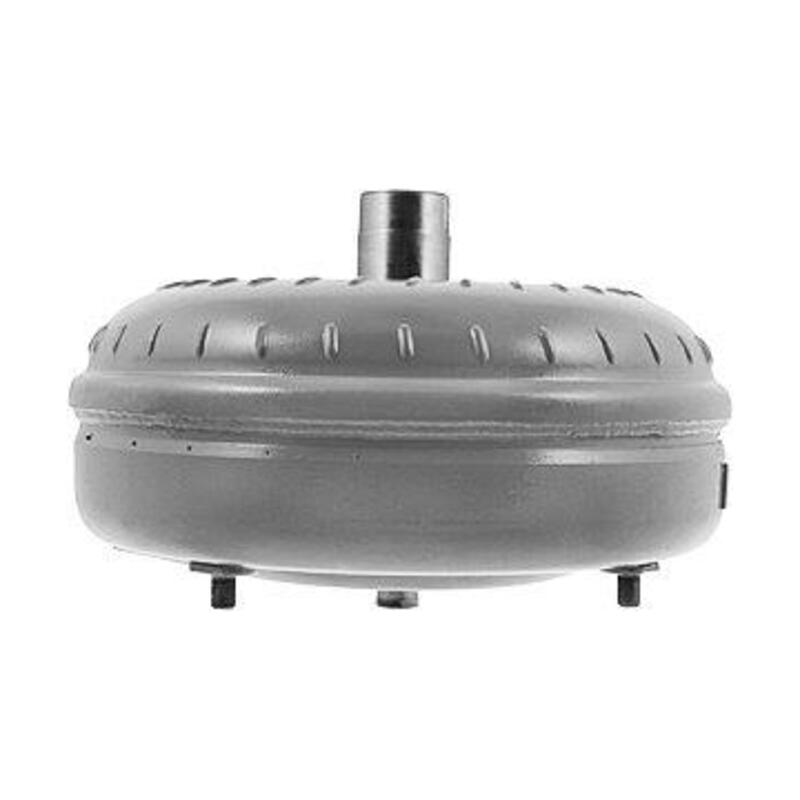

CVCTorque ConverterPart #: CV-FM4600SC
$306.67 $15.00 Core
Login for personalized shopping
Description & Specs
Expect the best with CVC. Specializing in reliable, yet affordable, sealed torque converters, CVC torque converters are among the most popular in the industry. Their unique process combines the skillful experience of bench craftsman with the industrial engineering production line.
Torque Converter; 5R55S, 05-07; Remanufactured
| Name | Specs |
|---|---|
| Balance Weight Position | COVEROD |
| Billet Cover | No |
| Body Diameter Inches | 11.13 |
| Body Diameter mm | 282.7 |
| Bolt Circle Inches | 8.875 |
| Codes Metal/Laser Stamped | B&A, 4R3P |
| Cooling Shroud | No |
| Dimension Height | 7.375 |
| Dimension Length | 13.5 |
| Dimension UOM | Inches |
| Dimension Width | 13.5 |
| Dimple Pitch | Medium Low 530 |
| Hub Internal Bushing | No |
| Hub Length Inches | 2.25 |
| Hub OD Major Inches | 1.61 |
| Hub OD Minor Inches | 1.596 |
| Hub Seal Groove | No |
| Hub Type | Milled 2 Flats Stepped |
| Lock-Up Unit | Yes |
| Mount Threads | 10mm x 10 |
| Mount Type | Threaded Studs, Oval Pads |
| Number of Mounts | 4 |
| OE End Play | 0.015 |
| OE Height Inches | 6.04 |
| Package UOM | Each |
| Pilot Length Inches | 0.935 |
| Pilot OD Major Inches | 0.738 |
| Pilot Type | Straight |
| Pump Stall | Low |
| Quantity Per UOM | 1 |
| Remanufactured | Yes |
| Stator Rotation | Clockwise |
| Stator Spline Count | 30 |
| Stator Spline Depth Inches | 2.91 |
| Turbine Internal Spline Count | 21 |
| Turbine Spline Depth Inches | 4.56 |
| Turbine to Pump Clearance | 0.06 |
| Weight | 35 |
| Weight UOM | Pounds |
| With Ring Gear | No |
