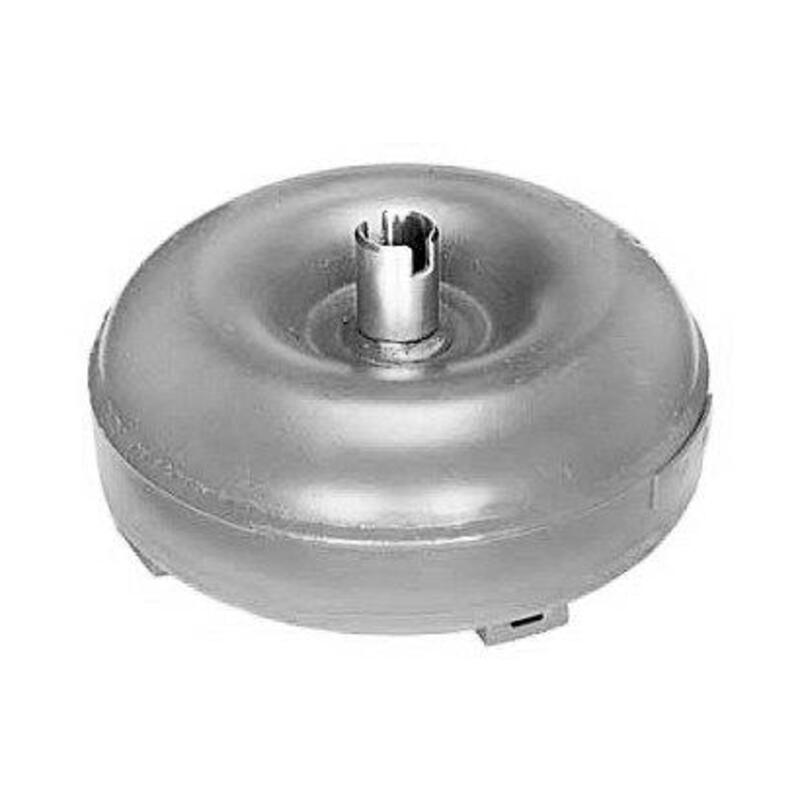

![CVC Torque Converter CV-CR53H](https://cdn.transend.us/img/CV-CR53H_P04_Front_36786.webp)
CVCTorque Converter
Part #: CV-CR53H $173.50 $8.00 Core
Call for Availability: +1 (833) 363-1938
Login for personalized shopping
Description & Specs
Expect the best with CVC. Specializing in reliable, yet affordable, sealed torque converters, CVC torque converters are among the most popular in the industry. Their unique process combines the skillful experience of bench craftsman with the industrial engineering production line.
Torque Converter; Lock-Up, 11" Overall Diameter, 10" Bolt Pattern, 4 Pads Mount w/ 5/16 x 24 Thread, Slotted Hub, 1.810" Pilot Diameter, 26 Spline, High Stall Speed; Remanufactured
Name | Specs |
---|---|
Dimension Height | 7.375 |
Dimension Length | 13.5 |
Dimension UOM | Inches |
Dimension Width | 13.5 |
Hub to Thrust Surface Inches | 2.25 |
Impeller Brazed | Yes |
Lock-Up Unit | Yes |
Package UOM | Each |
Pump Stall | High |
Quantity Per UOM | 1 |
Remanufactured | Yes |
Stator Rotation | Clockwise |
Stator Spline Count | 27 |
Turbine Internal Spline Count | 26 |
Weight | 34 |
Weight UOM | Pounds |
Transmissions
Name | Years |
---|---|
A904 (30RH) | 1980 - 1986 |
A999 (32RH) | 1980 - 1990 |
A904 | 1976 - 1984 |
Vehicle Fitment
Years | Vehicle | Drive Types |
---|---|---|
1979 - 1983 | American Motors Spirit | RWD |
1976 - 1980 | American Motors Pacer | RWD |
1978 - 1978 | American Motors Matador | RWD |
1976 - 1977 | American Motors Hornet | RWD |
1976 - 1978 | American Motors Gremlin | RWD |
1980 - 1984 | American Motors Eagle | 4WD |
1978 - 1983 | American Motors Concord | RWD |
1978 - 1980 | American Motors AMX | RWD |
1987 - 1990 | Jeep Wrangler | 4WD |
1982 - 1983 | Jeep Wagoneer | 4WD |
1981 - 1985 | Jeep Scrambler | 4WD |
1983 - 1986 | Jeep J10 | 4WD |
1984 - 1986 | Jeep Grand Wagoneer | 4WD |
1980 - 1986 | Jeep CJ7 | 4WD |
1980 - 1983 | Jeep CJ5 | 4WD |
1982 - 1983 | Jeep Cherokee | 4WD |
1983 - 1983 | Mitsubishi Montero | 4WD |
