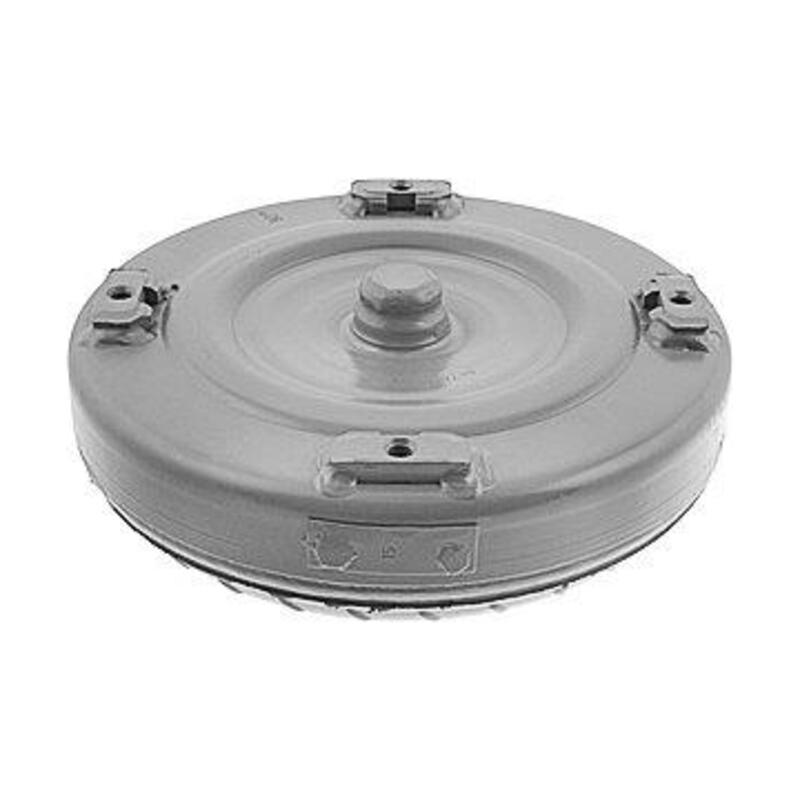

CVCTorque Converter
Part #: CV-CR1320 $189.21 $25.00 Core
Login for personalized shopping
Description & Specs
Expect the best with CVC. Specializing in reliable, yet affordable, sealed torque converters, CVC torque converters are among the most popular in the industry. Their unique process combines the skillful experience of bench craftsman with the industrial engineering production line.
Torque Converter; Remanufactured, 10.75" Body Diameter, Flats/Flanged Hub Type, 4 Mounts, Pads Mount Type, 9" Bolt Circle, No Ring Gear, 447AB, 520AA, 520AB, 556AA, 556AB, 556AC Stamped Codes, Low Stall, 22 Turbine Splines, Electronically Modulated Converter Clutch Grooved Clutch Friction Type, Lock-Up
| Name | Specs |
|---|---|
| Body Diameter Inches | 10.75 |
| Bolt Circle Inches | 9 |
| Clutch Friction Type | Electronically Modulated Converter Clutch Grooved |
| Codes Dye/Ink Stamped | 447AB, 520AA, 520AB, 556AA, 556AB, 556AC |
| Dimension Height | 7.375 |
| Dimension Length | 11.625 |
| Dimension UOM | Inches |
| Dimension Width | 11.625 |
| Hub Type | Flats/Flanged |
| Impeller Brazed | Yes |
| Lock-Up Unit | Yes |
| Mount Type | Pads |
| Number of Mounts | 4 |
| Package UOM | Each |
| Pump Stall | Low |
| Quantity Per UOM | 1 |
| Remanufactured | Yes |
| Stator Codes | 596AA |
| Stator Rotation | Clockwise |
| Stator Spline Count | 27 |
| Stator Vane Count | 19 |
| Turbine Internal Spline Count | 22 |
| Turbine to Pump Clearance | 0.125 |
| Weight | 24 |
| Weight UOM | Pounds |
| With Ring Gear | No |
Transmissions
| Name | Years |
|---|---|
| 09G | 2012 - 2012 |
| 62TE | 2007 - 2014 |
| 62TEA | 2009 - 2009 |
Vehicle Fitment
| Years | Vehicle | Drive Types |
|---|---|---|
| 2010 - 2013 | Chrysler Town & Country | FWD |
| 2007 - 2010 | Chrysler Sebring | FWD, AWD |
| 2009 - 2010 | Dodge Journey | FWD, AWD |
| 2008 - 2009 | Dodge Grand Caravan | FWD |
| 2008 - 2010 | Dodge Avenger | FWD, AWD |
| 2009 - 2014 | Volkswagen Routan | FWD |
| 2012 - 2012 | Volkswagen Passat | FWD |
