Direct Drum to Hub, w/ Lip, No Aftermarket
4R70W, 4R75W, 4R75E, 4R70E

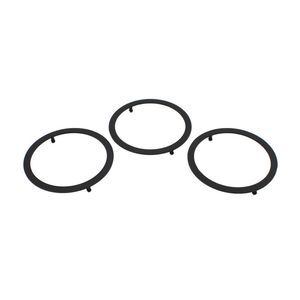

Stator to 1-2-3-4 and Rec Clutch Drum, Bag of 3
6L80, 6L45, 6L50, 6L90, 6L80-E
Shell to Inner Race, Plastic
THM350, 4L60-E, THM700-R4, THM250C/M31, THM350C, THM700-R4/4L60/MD8, 4L65-E, 6L80, 4L70-E, 4L60-E-HD
Rear Planet, 6 Tab, 3.70" Outer Diameter, 2.245" Inner Diameter, Front and Rear, 2 Required
48RE
Overdrive Piston to Hub, Selective, .169"
42RE, 42RH, 44RE, 46RE, 47RE, A518 (46RH), A500, 46RH, 48RE, 47RH
Pump Bolt, .563" Outer Diameter, .328" Inner Diameter, .033" Thick
A727, A727 (36RH), A904 (30RH), A998 (31RH), A999 (32RH), 42RE, 42RH, 44RE, 46RE, 47RE, A518 (46RH), THM400, THM200-4R, THM350, THM250C/M31, THM350C, THM700-R4/4L60/MD8, A904, A500, 46RH, 32RH, 30RH, 36RH, 31RH, 48RE, 47RH, 3L80, AT542
Forward Hub to Direct Drum, .094", Oversized, Includes 5 Washers
THM400, 4L80-E, 4L80-E-HD/MN8, THM-R2/MT1, 4L85-E, 3L80
Overdrive Piston to Hub, Selective, .184"
42RE, 42RH, 44RE, 46RE, 47RE, A518 (46RH), A500, 46RH, 48RE, 47RH
6 Tab Rear, Teflon Coated, 3.70" Outer Diameter, 2.245" Inner Diameter
48RE
Forward Hub to Direct Drum, .078", Oversized, Includes 5 Washers
THM400, 4L80-E, 4L80-E-HD/MN8, THM-R2/MT1, 4L85-E, 3L80
Front Planet to Ring Gear, 3.40" Outer Diameter, 2.52" Inner Diameter
48RE
Rear Planet, 6 Tab, 3.70" Outer Diameter, 2.245" Inner Diameter, Front and Rear, 2 Required
48RE
Driven Sprocket Support to 2nd Clutch Drum, Metal, 2 Tabs
4T65-AWD, 4T60-E, 4T65-E-HD/MN7, 4T65-E, 4T65-E-HD, 4T65-EV, 4T65-EV-GT
Center Planet, Bronze Pinion
AT542
THM400, 4L80-E, 4L80-E-HD/MN8, THM-R2/MT1, 4L85-E, 3L80
Forward Hub To Direct Drum, Plastic
THM400, 4L80-E, 4L80-E-HD/MN8, THM-R2/MT1, 4L85-E, 3L80
