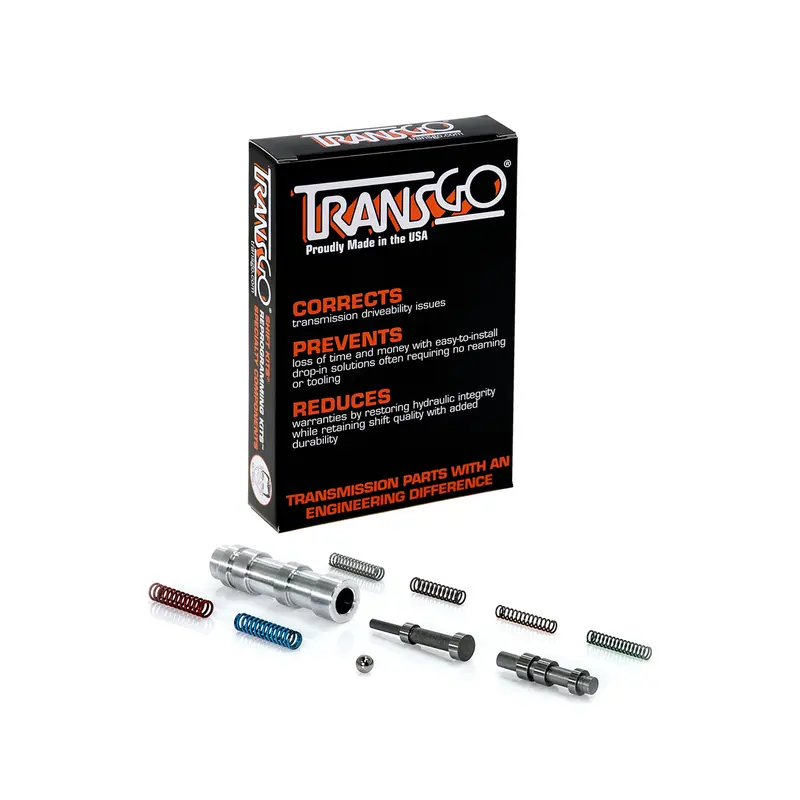

TransGoValve Body Kit
Part #: T74741VK $201.44
Login for personalized shopping
Description & Specs
This TransGo kit does not require any electric connection for lock-up operation. However, the kit requires the valve body to be factory machined for the inner and outer valve train that may be currently occupied by the OE dummy plugs or existing valve train. The kit can also be used to replace existing valve train for easier TCC shift timing calibration.
Valve Body Kit; Hydraulic Lock-Up
| Name | Specs |
|---|---|
| Add-On-Part | 700 PKH, SK 700-JR, 700-2&3, 700-P, SK 700, 7-CCV, 7-300, 7-2P, 7-500 |
| Container Type | BX |
| Country of Origin (Primary) | US |
| Desc Ext. | THM 700 82-88 |
| Desc Ext. Lang.Cd | EN |
| Desc Invoice | THM 700-R4: Lockup Bushing & Valve Kit |
| Desc Invoice Lang.Cd | EN |
| Desc Long | THM 700-R4: Lockup Bushing & Valve Kit |
| Desc Long Lang.Cd | EN |
| Desc Short | Automatic Transmission Shift Kit |
| Desc Short Lang.Cd | EN |
| Dimension Height | 3.75 |
| Dimension Length | 1.0625 |
| Dimension UOM | Inches |
| Dimension Width | 5.625 |
| Hazardous Material Code | N |
| Item Quantity Size | 1 |
| Item Quantity Size UOM | EA |
| Marketing Desc | 700 Hydraulic Lock Up Kit. No electrical needed. Great for conversions, failed electrical systems. It's been designed for part throttle unlock, and quick lockup delay when adding throttle. VALVE BODY MUST HAVE TCC BORE. (82 TO 87 VB) |
| Marketing Desc Invoice Lang.Cd | EN |
| Minimum Order Quantity | 1 |
| Minimum Order UOM | EA |
| Package UOM | Each |
| Quantity Per Appl Qualifier | NOR |
| Quantity Per Application | 1 |
| Quantity Per Application UOM | EA |
| Quantity Per UOM | 1 |
| Title | Trans Go - 700-LU - Shift Kit - THM 700-R4: Lockup Bushing & Valve Kit |
| Weight | 0.25 |
| Weight UOM | Pounds |
Transmissions
| Name | Years |
|---|---|
| THM700-R4 | 1981 - 1992 |
| THM700-R4/4L60/MD8 | 1980 - 1994 |
Vehicle Fitment
| Years | Vehicle | Drive Types |
|---|---|---|
| 1987 - 1991 | Avanti II | RWD |
| 1991 - 1992 | Bentley Turbo R | RWD |
| 1992 - 1992 | Bentley Mulsanne | RWD |
| 1991 - 1992 | Bentley Continental | RWD |
| 1991 - 1993 | Buick Roadmaster | RWD |
| 1984 - 1984 | Buick Regal | RWD |
| 1988 - 1988 | Buick LeSabre | RWD |
| 1988 - 1989 | Buick Electra | RWD |
| 1991 - 1993 | Buick Commercial Chassis | RWD |
| 1993 - 1993 | Cadillac Fleetwood | RWD |
| 1992 - 1993 | Cadillac Commercial Chassis | RWD |
| 1990 - 1992 | Cadillac Brougham | RWD |
| 1989 - 1991 | Chevrolet V3500 | 4WD |
| 1987 - 1988 | Chevrolet V30 | 4WD |
| 1989 - 1991 | Chevrolet V2500 Suburban | 4WD |
| 1987 - 1988 | Chevrolet V20 Suburban | 4WD |
| 1987 - 1987 | Chevrolet V20 | 4WD |
| 1989 - 1991 | Chevrolet V1500 Suburban | 4WD |
| 1987 - 1988 | Chevrolet V10 Suburban | 4WD |
| 1987 - 1987 | Chevrolet V10 | 4WD |
| 1983 - 1992 | Chevrolet S10 Blazer | RWD, 4WD |
| 1983 - 1993 | Chevrolet S10 | RWD, 4WD |
| 1989 - 1991 | Chevrolet R3500 | RWD |
| 1987 - 1988 | Chevrolet R30 | RWD |
| 1989 - 1991 | Chevrolet R2500 Suburban | RWD |
| 1989 - 1989 | Chevrolet R2500 | RWD |
| 1987 - 1988 | Chevrolet R20 Suburban | RWD |
| 1987 - 1988 | Chevrolet R20 | RWD |
| 1989 - 1991 | Chevrolet R1500 Suburban | RWD |
| 1987 - 1988 | Chevrolet R10 Suburban | RWD |
| 1987 - 1987 | Chevrolet R10 | RWD |
| 1980 - 1981 | Chevrolet P30 | RWD |
| 1980 - 1981 | Chevrolet P20 | RWD |
| 1982 - 1988 | Chevrolet Monte Carlo | RWD |
| 1982 - 1983 | Chevrolet Malibu | RWD |
| 1982 - 1986 | Chevrolet K5 Blazer | RWD, 4WD |
| 1988 - 1989 | Chevrolet K3500 | 4WD |
| 1982 - 1986 | Chevrolet K30 | 4WD |
| 1992 - 1992 | Chevrolet K2500 Suburban | 4WD |
| 1988 - 1992 | Chevrolet K2500 | 4WD |
| 1982 - 1986 | Chevrolet K20 Suburban | 4WD |
| 1982 - 1986 | Chevrolet K20 | 4WD |
| 1992 - 1992 | Chevrolet K1500 Suburban | 4WD |
| 1988 - 1992 | Chevrolet K1500 | 4WD |
| 1982 - 1986 | Chevrolet K10 Suburban | 4WD |
| 1982 - 1986 | Chevrolet K10 | 4WD |
| 1982 - 1985 | Chevrolet Impala | RWD |
| 1983 - 1992 | Chevrolet G30 | RWD |
| 1983 - 1992 | Chevrolet G20 | RWD |
| 1983 - 1992 | Chevrolet G10 | RWD |
| 1982 - 1987 | Chevrolet El Camino | RWD |
| 1982 - 1993 | Chevrolet Corvette | RWD |
| 1991 - 1994 | Chevrolet Commercial Chassis | RWD |
| 1982 - 1993 | Chevrolet Caprice | RWD |
| 1983 - 1993 | Chevrolet Camaro | RWD |
| 1988 - 1990 | Chevrolet C3500 | RWD |
| 1982 - 1986 | Chevrolet C30 | RWD |
| 1992 - 1992 | Chevrolet C2500 Suburban | RWD |
| 1988 - 1992 | Chevrolet C2500 | RWD |
| 1982 - 1986 | Chevrolet C20 Suburban | RWD |
| 1982 - 1986 | Chevrolet C20 | RWD |
| 1992 - 1992 | Chevrolet C1500 Suburban | RWD |
| 1988 - 1992 | Chevrolet C1500 | RWD |
| 1982 - 1986 | Chevrolet C10 Suburban | RWD |
| 1982 - 1986 | Chevrolet C10 | RWD |
| 1987 - 1993 | Chevrolet Blazer | 4WD |
| 1985 - 1992 | Chevrolet Astro | AWD, RWD |
| 1992 - 1992 | GMC Yukon | RWD, 4WD |
| 1987 - 1991 | GMC V3500 | 4WD |
| 1987 - 1991 | GMC V2500 Suburban | 4WD |
| 1987 - 1987 | GMC V2500 | 4WD |
| 1987 - 1991 | GMC V1500 Suburban | 4WD |
| 1987 - 1987 | GMC V1500 | 4WD |
| 1992 - 1992 | GMC Typhoon | AWD |
| 1991 - 1991 | GMC Syclone | AWD |
| 1991 - 1993 | GMC Sonoma | RWD, 4WD |
| 1985 - 1992 | GMC Safari | AWD, RWD |
| 1983 - 1991 | GMC S15 Jimmy | RWD, 4WD |
| 1983 - 1990 | GMC S15 | RWD, 4WD |
| 1987 - 1991 | GMC R3500 | RWD |
| 1987 - 1991 | GMC R2500 Suburban | RWD |
| 1987 - 1989 | GMC R2500 | RWD |
| 1987 - 1991 | GMC R1500 Suburban | RWD |
| 1987 - 1987 | GMC R1500 | RWD |
| 1980 - 1981 | GMC P3500 | RWD |
| 1980 - 1981 | GMC P2500 | RWD |
| 1982 - 1991 | GMC K3500 | 4WD |
| 1982 - 1992 | GMC K2500 Suburban | 4WD |
| 1982 - 1992 | GMC K2500 | 4WD |
| 1982 - 1992 | GMC K1500 Suburban | 4WD |
| 1982 - 1992 | GMC K1500 | 4WD |
| 1982 - 1992 | GMC Jimmy | RWD, 4WD |
| 1983 - 1992 | GMC G3500 | RWD |
| 1983 - 1992 | GMC G2500 | RWD |
| 1983 - 1992 | GMC G1500 | RWD |
| 1984 - 1987 | GMC Caballero | RWD |
| 1982 - 1991 | GMC C3500 | RWD |
| 1982 - 1992 | GMC C2500 Suburban | RWD |
| 1982 - 1992 | GMC C2500 | RWD |
| 1982 - 1992 | GMC C1500 Suburban | RWD |
| 1982 - 1992 | GMC C1500 | RWD |
| 1991 - 1991 | Isuzu Pickup | RWD, 4WD |
| 1984 - 1988 | Oldsmobile Cutlass Supreme | RWD |
| 1984 - 1984 | Oldsmobile Cutlass Calais | RWD |
| 1988 - 1992 | Oldsmobile Custom Cruiser | RWD |
| 1991 - 1992 | Oldsmobile Bravada | AWD |
| 1988 - 1988 | Pontiac Safari | RWD |
| 1983 - 1986 | Pontiac Parisienne | RWD |
| 1983 - 1986 | Pontiac Grand Prix | RWD |
| 1983 - 1993 | Pontiac Firebird | RWD |
| 1983 - 1986 | Pontiac Bonneville | RWD |
| 1992 - 1992 | Rolls-Royce Silver Spur | RWD |
| 1992 - 1992 | Rolls-Royce Silver Spirit | RWD |
| 1992 - 1992 | Rolls-Royce Corniche II | RWD |
