Recon Torque Converter N33T01
  • Recon Torque Converter N33T01
  • Recon Torque Converter N33T01
  • Recon Torque Converter N33T01
  • Recon Torque Converter N33T01
  • Recon Torque Converter N33T01
  • Recon Torque Converter N33T01
  • Recon Torque Converter N33T01
  • Recon Torque Converter N33T01

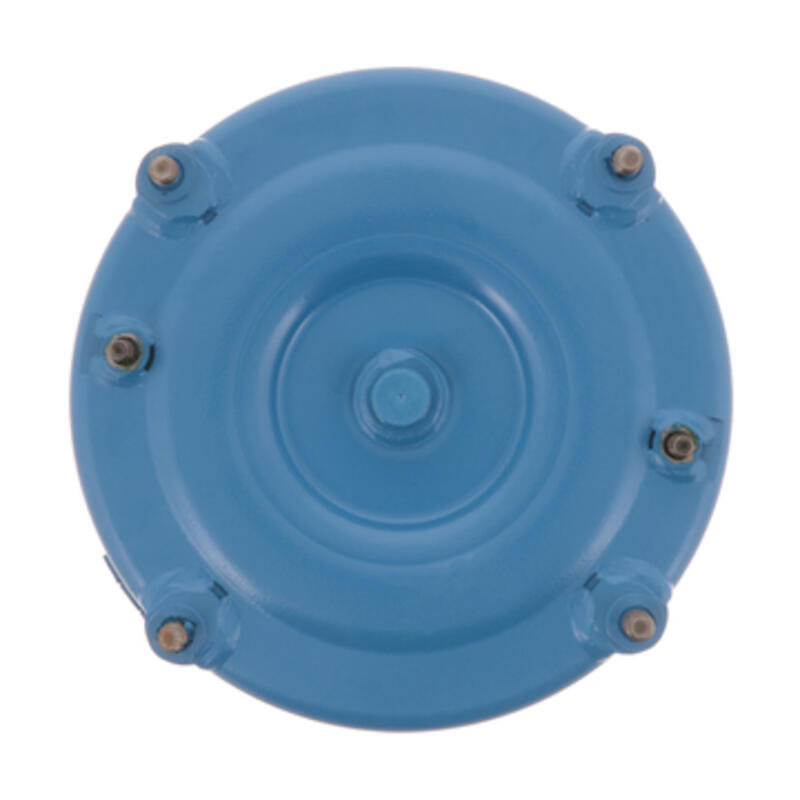

ReconTorque ConverterPart #: N33T01

$267.63 $50.00 Core
Quantity
Login for personalized shopping

Description & Specs

Each RECON Certified torque converter is rebuilt to the highest-quality standards in the industry and warranted to be free from manufacturing defects in material and workmanship for 4-years, 100,000-miles from the date of purchase. Our unmatched 5-step remanufacturing process combines the precision of computers with the experience of engineers to ensure consistently high quality is achieved.

Torque Converter; Codes: 31100, 1XB60, E16; Remanufactured

Name Specs
Balance Weight PositionCOVEROD
Billet CoverNo
Body Diameter Inches9.45
Body Diameter mm240
Bolt Circle Inches9
Codes Dye/Ink StampedE16
Codes Metal/Laser StampedTE
Cooling ShroudNo
Dimple PitchLow 5
Hub Gear Signature0.275
Hub Internal BushingNo
Hub Length Inches0.74
Hub OD Major Inches1.808
Hub Seal GrooveNo
Hub Type2 Drive Ears, Stepped Flanged
Lock-Up UnitYes
Mount Threads10mm x 125
Mount TypeThreaded Studs, Round Pads
Number of Mounts4
OE End Play0.015
OE Height Inches3.2
Package UOMEach
Pilot OD Major Inches0.786
Pilot TypeStraight
Pump StallLow
Quantity Per UOM1
RemanufacturedYes
Stator Codes6E02 2-2
Stator RotationClockwise
Stator Spline Count30
Stator Spline Depth Inches0.94
Stator Vane Count25
Turbine Internal Spline Count18
Turbine Spline Depth Inches2.025
Turbine to Pump Clearance0.1
Weight20.00
Weight UOMPounds
With Ring GearNo

Transmissions

Name Years
RE0F08A2008 - 2008
RE0F08B2010 - 2012

Vehicle Fitment

Years Vehicle Drive Types
2008 - 2012Nissan VersaFWD
