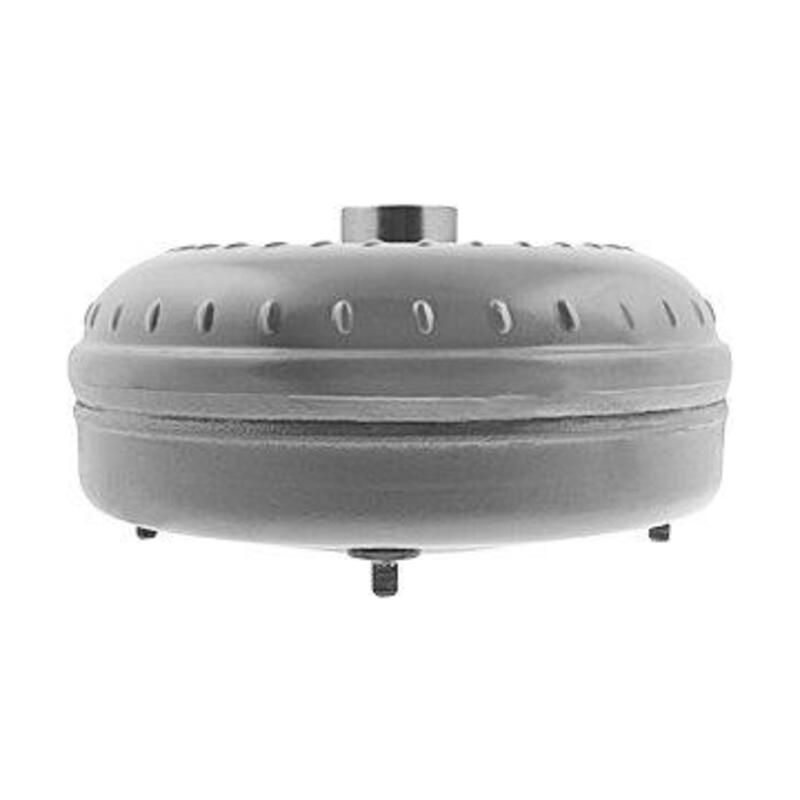

CVC Torque Converter CV-FM90LS
  • CVC Torque Converter CV-FM90LS
  • CVC Torque Converter CV-FM90LS
  • CVC Torque Converter CV-FM90LS
  • CVC Torque Converter CV-FM90LS
  • CVC Torque Converter CV-FM90LS

CVCTorque ConverterPart #: CV-FM90LS

$238.01 $10.00 Core
Quantity
Login for personalized shopping

Description & Specs

Expect the best with CVC. Specializing in reliable, yet affordable, sealed torque converters, CVC torque converters are among the most popular in the industry. Their unique process combines the skillful experience of bench craftsman with the industrial engineering production line.

Torque Converter; Remanufactured, 11.05" Body Diameter, No Drive Internal Hub Type, 4 Mounts, Threaded Studs, Oval Pads Mount Type, 8.85" Bolt Circle, 0.825" Pilot Outside Diameter, No Ring Gear, Green Dot Paint Code, 3F2P, 3F2P-AG, 3F2P=BF, 5F2P, 5F2P-AD, 5F2P-AG, 5F2P-BC Stamped Codes, 2300-2500 Stall, 25 Turbine Splines, Lock-Up

Name Specs
Balance Weight PositionCOVEROD
Billet CoverNo
Body Diameter Inches11.05
Body Diameter mm280.7
Bolt Circle Inches8.85
Codes Dye/Ink Stamped3F2P, 3F2P-AG, 3F2P=BF, 5F2P, 5F2P-AD, 5F2P-AG, 5F2P-BC
Codes PaintGreen Dot
Cooling ShroudNo
Dimension Height7.375
Dimension Length11.625
Dimension UOMInches
Dimension Width11.625
Dimple PitchMedium Low 530
Hub Internal BushingYes
Hub Length Inches1.21
Hub OD Major Inches1.997
Hub Seal GrooveNo
Hub TypeNo Drive Internal
Lock-Up UnitYes
Mount Threads10mm x 10
Mount TypeThreaded Studs, Oval Pads
Number of Mounts4
OE End Play0.02
OE Height Inches5.155
Package UOMEach
Pilot OD Major Inches0.825
Pilot TypeStraight
Pump Stall2300-2500
Quantity Per UOM1
RemanufacturedYes
Stator RotationClockwise
Stator Spline Count32
Stator Spline Depth Inches2.065
Stator Vane Count13
Turbine Internal Spline Count25
Turbine Spline Depth Inches3.69
Weight34
Weight UOMPounds
With Ring GearNo

Transmissions

Name Years
AX4N2004 - 2007

Vehicle Fitment

Years Vehicle Drive Types
2004 - 2007Ford FreestarFWD
