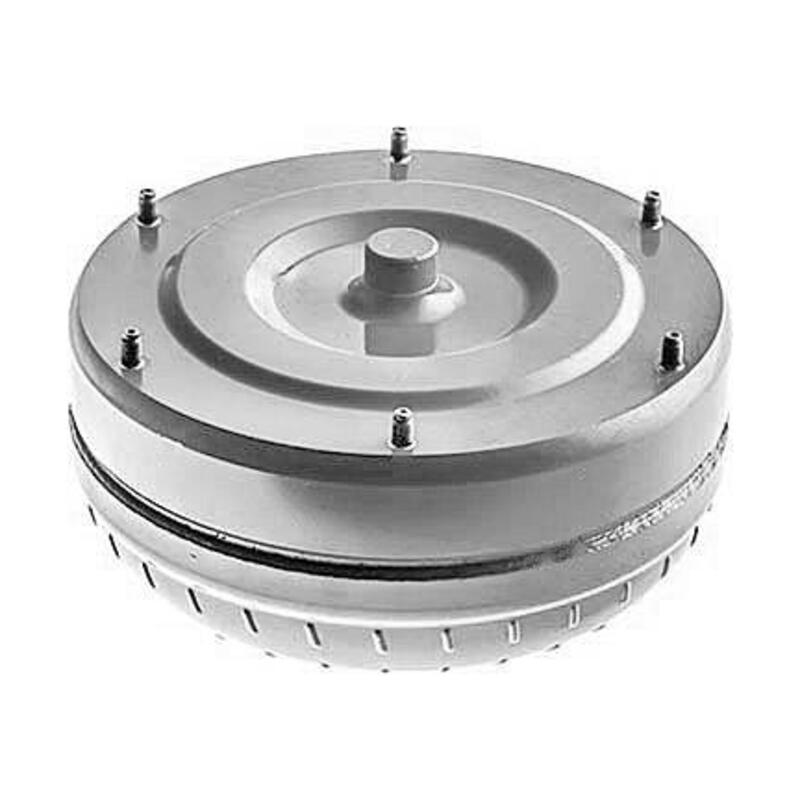

CVCTorque Converter
Part #: CV-FM64RX-S1 $852.74 $65.00 Core
Login for personalized shopping
Description & Specs
Expect the best with CVC. Specializing in reliable, yet affordable, sealed torque converters, CVC torque converters are among the most popular in the industry. Their unique process combines the skillful experience of bench craftsman with the industrial engineering production line.
Torque Converter; Remanufactured, 12.75" Body Diameter, Milled Flats Hub Type, 6 Mounts, Stud Mount Type, 11.375" Bolt Circle, 1.375" Pilot Outside Diameter, No Ring Gear, 1500-1700 Stall, 31 Turbine Splines, Lock-Up, Billet Cover
| Name | Specs |
|---|---|
| Billet Cover | Yes |
| Body Diameter Inches | 12.75 |
| Bolt Circle Inches | 11.375 |
| Country of Origin (Primary) | US |
| Dimension Height | 8.5 |
| Dimension Length | 15.25 |
| Dimension UOM | Inches |
| Dimension Width | 15.25 |
| Hub Type | Milled Flats |
| Lock-Up Unit | Yes |
| Mount Type | Stud |
| Number of Mounts | 6 |
| Package UOM | Palette |
| Pilot OD Major Inches | 1.375 |
| Pump Stall | 1500-1700 |
| Quantity Per UOM | 45 |
| Remanufactured | Yes |
| Turbine Internal Spline Count | 31 |
| Weight | 2580 |
| Weight UOM | Pounds |
| With Ring Gear | No |
Transmissions
| Name | Years |
|---|---|
| 4R100 | 1998 - 2005 |
Vehicle Fitment
| Years | Vehicle | Drive Types |
|---|---|---|
| 2000 - 2004 | Ford F-53 Motorhome Chassis | 4 X 2 |
| 1999 - 2004 | Ford F-350 Super Duty | RWD, 4WD |
| 1999 - 2004 | Ford F-250 Super Duty | RWD, 4WD |
| 2000 - 2005 | Ford Excursion | RWD, 4WD |
| 2003 - 2005 | Ford E-450 Super Duty | 4 X 2 |
| 2000 - 2002 | Ford E-450 Econoline Super Duty | 4 X 2 |
| 1999 - 2003 | Ford E-350 Super Duty | RWD |
| 1998 - 2002 | Ford E-350 Econoline Club Wagon | RWD |
