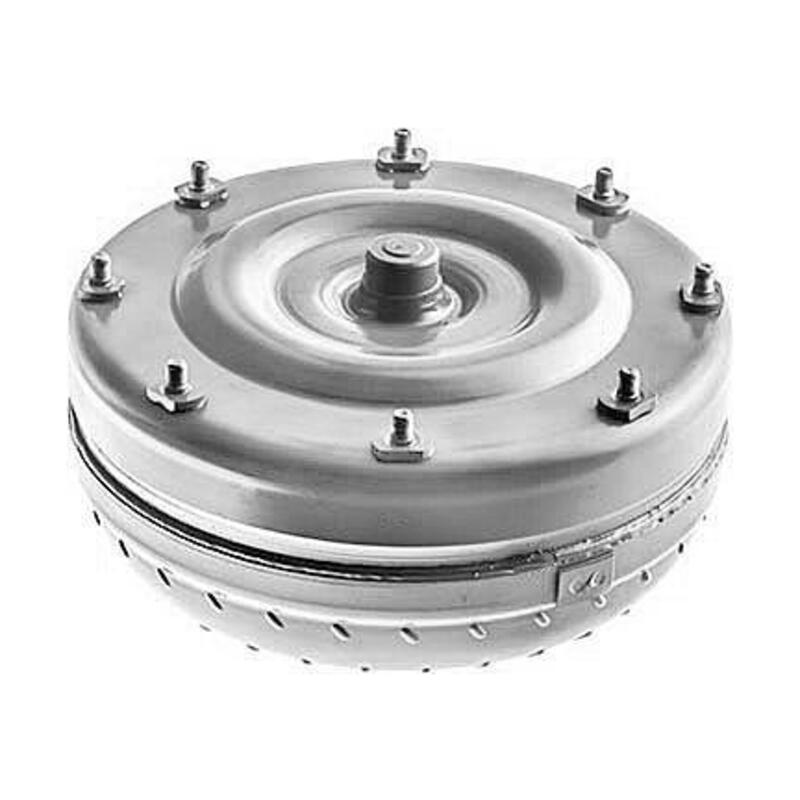

CVCTorque Converter
Part #: CV-FM1603 $516.70 $75.00 Core
Login for personalized shopping
Description & Specs
Expect the best with CVC. Specializing in reliable, yet affordable, sealed torque converters, CVC torque converters are among the most popular in the industry. Their unique process combines the skillful experience of bench craftsman with the industrial engineering production line.
Torque Converter; Remanufactured, 12.75" Body Diameter, Milled 2 Flats Stepped Hub Type, 8 Mounts, Threaded Studs, Oval Pads Mount Type, 11.375" Bolt Circle, 1.375" Pilot Outside Diameter, No Ring Gear, 6MM, WW9 Stamped Code, Low Stall, 31 Turbine Splines, Lock-Up
Name | Specs |
---|---|
Billet Cover | No |
Body Diameter Inches | 12.75 |
Body Diameter mm | 323.9 |
Bolt Circle Inches | 11.375 |
Codes Metal/Laser Stamped | 6MM, WW9 |
Cooling Shroud | No |
Dimension Height | 8.5 |
Dimension Length | 15.25 |
Dimension UOM | Inches |
Dimension Width | 15.25 |
Dimple Pitch | Low 5 |
Hub Flats OD Inches | 1.842 |
Hub Internal Bushing | No |
Hub OD Major Inches | 1.996 |
Hub OD Minor Inches | 1.985 |
Hub Seal Groove | No |
Hub Type | Milled 2 Flats Stepped |
Lock-Up Unit | Yes |
Mount Threads | 38 x 16 |
Mount Type | Threaded Studs, Oval Pads |
Number of Mounts | 8 |
OE End Play | 0.02 |
OE Height Inches | 7 |
Package UOM | Each |
Pilot OD Major Inches | 1.375 |
Pilot Type | Straight |
Pump Stall | Low |
Quantity Per UOM | 1 |
Remanufactured | Yes |
Stator Rotation | Clockwise |
Stator Spline Count | 32 |
Stator Vane Count | 11 |
Turbine Internal Spline Count | 31 |
Weight | 56 |
Weight UOM | Pounds |
With Ring Gear | No |
Transmissions
Name | Years |
---|---|
5R110W | 2008 - 2010 |
Vehicle Fitment
Years | Vehicle | Drive Types |
---|---|---|
2008 - 2010 | Ford F-550 Super Duty | 4 X 4, 4 X 2 |
2009 - 2010 | Ford F-450 Super Duty | 4 X 4, 4 X 2 |
2008 - 2010 | Ford F-350 Super Duty | RWD, 4WD |
2008 - 2010 | Ford F-250 Super Duty | RWD, 4WD |
