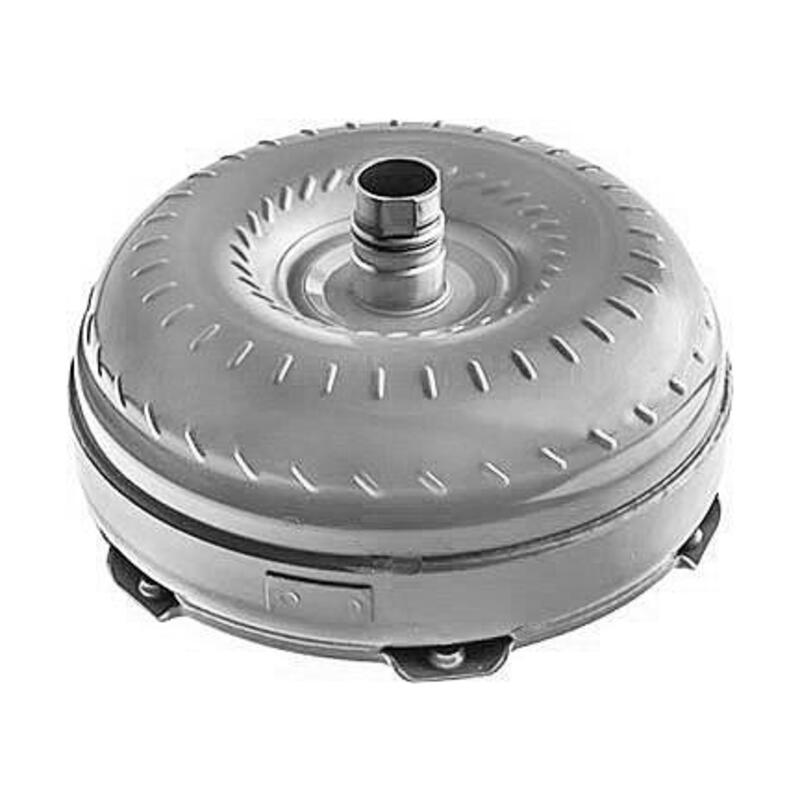

ReconTorque ConverterPart #: CR7202
$485.43 $380.00 Core
Login for personalized shopping
Description & Specs
Each RECON Certified torque converter is rebuilt to the highest-quality standards in the industry and warranted to be free from manufacturing defects in material and workmanship for 4-years, 100,000-miles from the date of purchase. Our unmatched 5-step remanufacturing process combines the precision of computers with the experience of engineers to ensure consistently high quality is achieved.
Torque Converter; Remanufactured, 13.425" Body Diameter, Flats with Groove Hub Type, 6 Mounts, Threaded Holes Mount Type, 12.25" Bolt Circle, 2.124" Pilot Outside Diameter, 1.074" Pilot Length, No Ring Gear, 671AD, 671AE, 671AF, 671AG, 671AH, P52119671AG Stamped Codes, 1350 Stall, 27 Turbine Splines, Lock-Up
| Name | Specs |
|---|---|
| Billet Cover | No |
| Body Diameter Inches | 13.425 |
| Bolt Circle Inches | 12.25 |
| Codes Dye/Ink Stamped | 671AE, P52119671AG |
| Hub Type | Flats with Groove |
| Impeller Brazed | Yes |
| Lock-Up Unit | Yes |
| Mount Type | Threaded Holes |
| Number of Mounts | 6 |
| Package UOM | Each |
| Pilot Length Inches | 1.074 |
| Pilot OD Major Inches | 2.124 |
| Pump Stall | 1350 |
| Quantity Per UOM | 1 |
| Remanufactured | Yes |
| Stator Rotation | Clockwise |
| Stator Spline Count | 27 |
| Stator Vane Count | 18 |
| Turbine Internal Spline Count | 27 |
| Turbine to Pump Clearance | 0.16 |
| Weight | 66.98 |
| Weight UOM | Pounds |
| With Ring Gear | No |
Transmissions
| Name | Years |
|---|---|
| 68RFE | 2007 - 2024 |
Vehicle Fitment
| Years | Vehicle | Drive Types |
|---|---|---|
| 2007 - 2010 | Dodge Ram 3500 | RWD, 4WD |
| 2007 - 2010 | Dodge Ram 2500 | RWD, 4WD |
| 2011 - 2024 | Ram 3500 | RWD, 4WD |
| 2011 - 2024 | Ram 2500 | RWD, 4WD |
