TransGoValve Body Kit
Part #: T72169A $204.30
Login for personalized shopping
Description & Specs

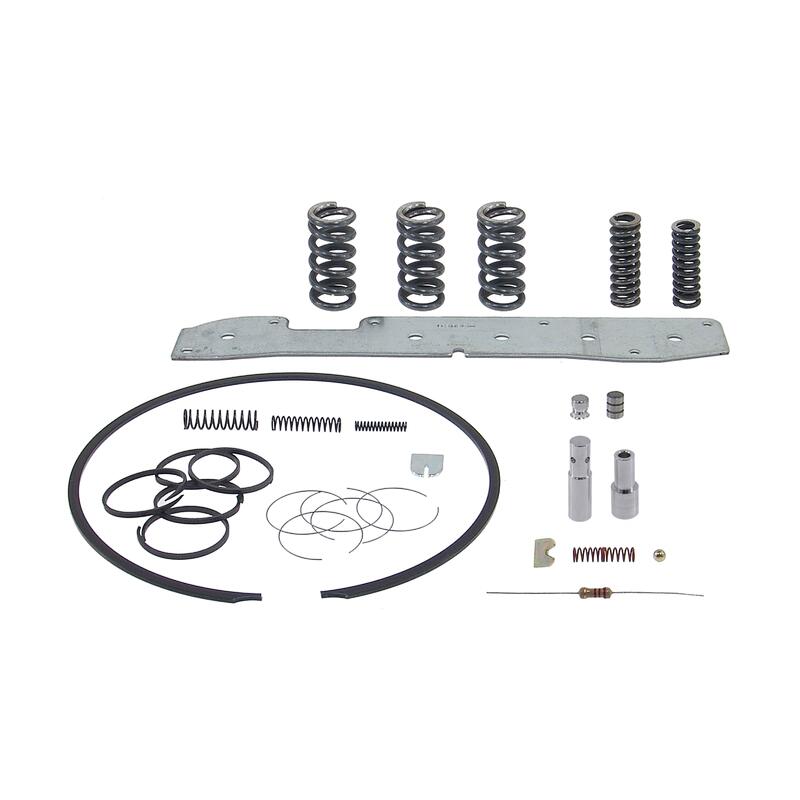

More often than not, this transmission will come in with the TC limit valve bore in the pump that is completely wiped out. It wears out so far that it appears the pump will need replacing. This RFE Reprogramming Kit comes with new, innovative drop-in TC limit parts that will restore TC limit system function in both the early and the late design pumps regardless of the amount of bore wear. This Reprogramming Kit includes parts, as well as technical information to address the above issues. It will also make the shifts quicker (transition time from release of present gear to apply of next gear).
Valve Body Kit; TransGo Valve Body Reprogramming Kit, Stage 1, Diesel Performance
| Name | Specs |
|---|---|
| Add-On-Part | SK 45RFE-A, RFE-SV420-WT, RFE-SV420-NT, RFE-SV453-WT, RFE-SV453-NT |
| Container Type | BX |
| Country of Origin (Primary) | US |
| Desc Ext. | Dodge Truck-SUV-Jeep Fits: 45, 545, 65, 66 & 68 RFE's 1999-up Expanded Unit Coverage - Now Fits 65 and 66RFE |
| Desc Ext. Lang.Cd | EN |
| Desc Invoice | Dodge 45-/545RFE & 68RFE 1999-On |
| Desc Invoice Lang.Cd | EN |
| Desc Long | Dodge 45-/545RFE & 68RFE 1999-On |
| Desc Long Lang.Cd | EN |
| Desc Short | Automatic Transmission Shift Kit |
| Desc Short Lang.Cd | EN |
| Dimension Height | 2.5 |
| Dimension Length | 15.5 |
| Dimension UOM | Inches |
| Dimension Width | 11.5 |
| Hazardous Material Code | N |
| Item Quantity Size | 1 |
| Item Quantity Size UOM | EA |
| Marketing Desc | Corrects/Prevents/Reduces: 2-3 neutral, drainback, limp, TCC slide bang and slip codes. Heavy duty accumulator plate/cover and Special accumulator seals. Has tough snap ring, saves pump and VB. Includes new TC limit valve system. NOTE: SK 45RFE and 45RFE- |
| Marketing Desc Invoice Lang.Cd | EN |
| Minimum Order Quantity | 1 |
| Minimum Order UOM | EA |
| Package UOM | Each |
| Quantity Per Appl Qualifier | NOR |
| Quantity Per Application | 1 |
| Quantity Per Application UOM | EA |
| Quantity Per UOM | 1 |
| Title | Trans Go - 45RFE-HD2 - Shift Kit - Dodge 45-/545RFE & 68RFE 1999-On |
| Weight | 1.7 |
| Weight UOM | Pounds |
Transmissions
| Name | Years |
|---|---|
| 45RFE | 1999 - 2009 |
| 545RFE | 2002 - 2012 |
| 68RFE | 2007 - 2018 |
| 65RFE | 2012 - 2018 |
| 66RFE | 2012 - 2018 |
Vehicle Fitment
| Years | Vehicle | Drive Types |
|---|---|---|
| 2007 - 2009 | Chrysler Aspen | RWD, 4WD |
| 2003 - 2010 | Dodge Ram 3500 | RWD, 4WD |
| 2003 - 2010 | Dodge Ram 2500 | RWD, 4WD |
| 2002 - 2010 | Dodge Ram 1500 | RWD, 4WD |
| 2000 - 2013 | Dodge Durango | AWD, RWD, 4WD |
| 2000 - 2010 | Dodge Dakota | RWD, 4WD |
| 2002 - 2006 | Jeep Liberty | RWD, 4WD |
| 1999 - 2013 | Jeep Grand Cherokee | AWD, RWD, 4WD |
| 2006 - 2010 | Jeep Commander | RWD, 4WD |
| 2006 - 2007 | Mitsubishi Raider | AWD, RWD, 4WD |
| 2011 - 2011 | Ram Dakota | RWD, 4WD |
| 2014 - 2016 | Ram 5500 | 4 X 4, 4 X 2 |
| 2014 - 2016 | Ram 4500 | 4 X 4, 4 X 2 |
| 2011 - 2018 | Ram 3500 | RWD, 4WD |
| 2011 - 2018 | Ram 2500 | RWD, 4WD |
| 2011 - 2018 | Ram 1500 | RWD, 4WD |
